Examples for class:

• Hello world and lw/sw Example: .ps, .pdf.
• Loop Example: .s, .ps, .pdf.
• Array Example (same as 2nd half above): .s, .ps, .pdf.
• Second Array Example (two ways to print arrays): .s, .ps, .pdf.
• Switch Example: .s, .ps, .pdf.
• Sample Quiz 3: .ps, .pdf
      Answer: .pdf.
• Sample Quiz 4: .ps, .pdf
      Answer: .text.
• Leaf Example: .s, .ps, .pdf.
• Write Array Example: .html, .txt, .ps, .pdf.
• Second Write Array Example: .html, .txt, .ps, .pdf.
• Recursive Factorial Example: .s, .ps, .pdf.

Pictures and Diagrams:

• Gates from CMOS transistors: PDF
• Single-cycle implementation (all JPG, from Megan Feeley):
  • Original File

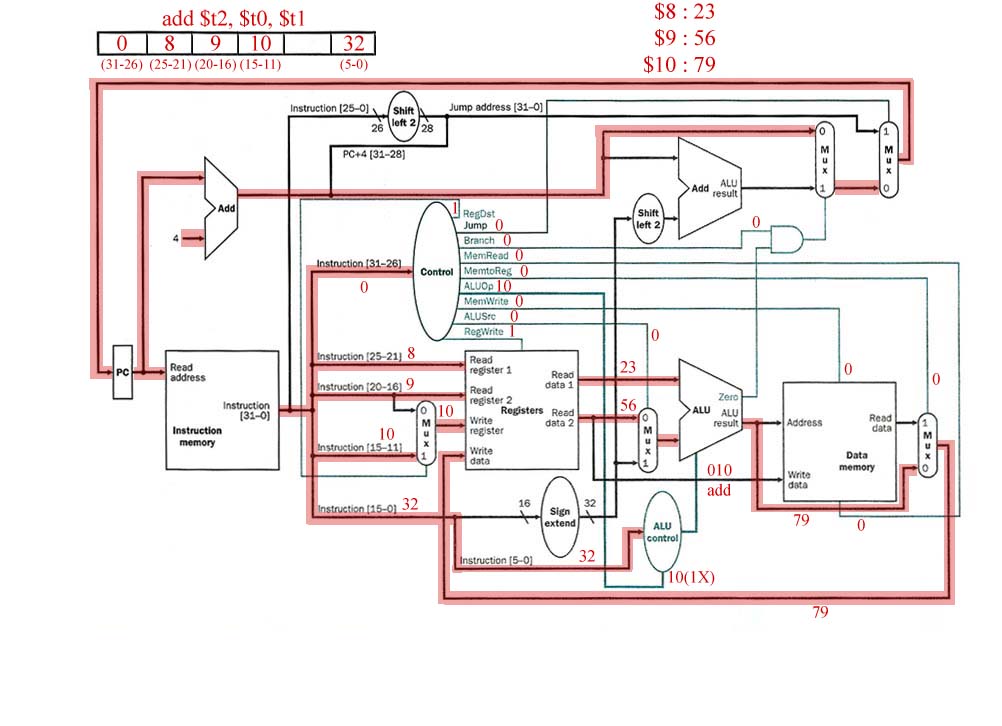

  • add

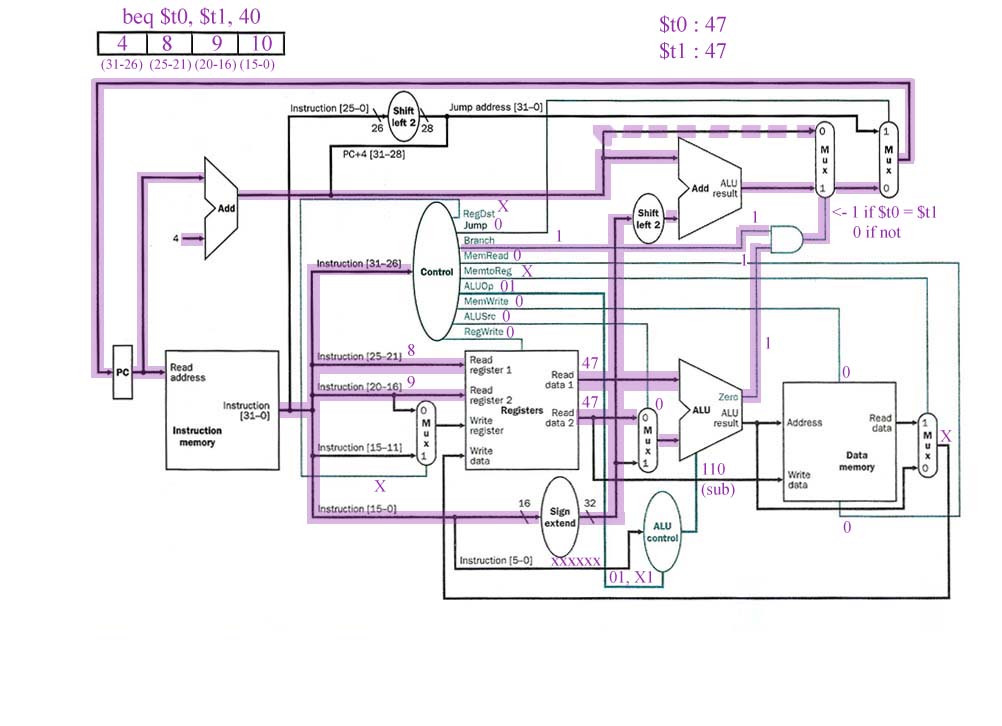

  • beq

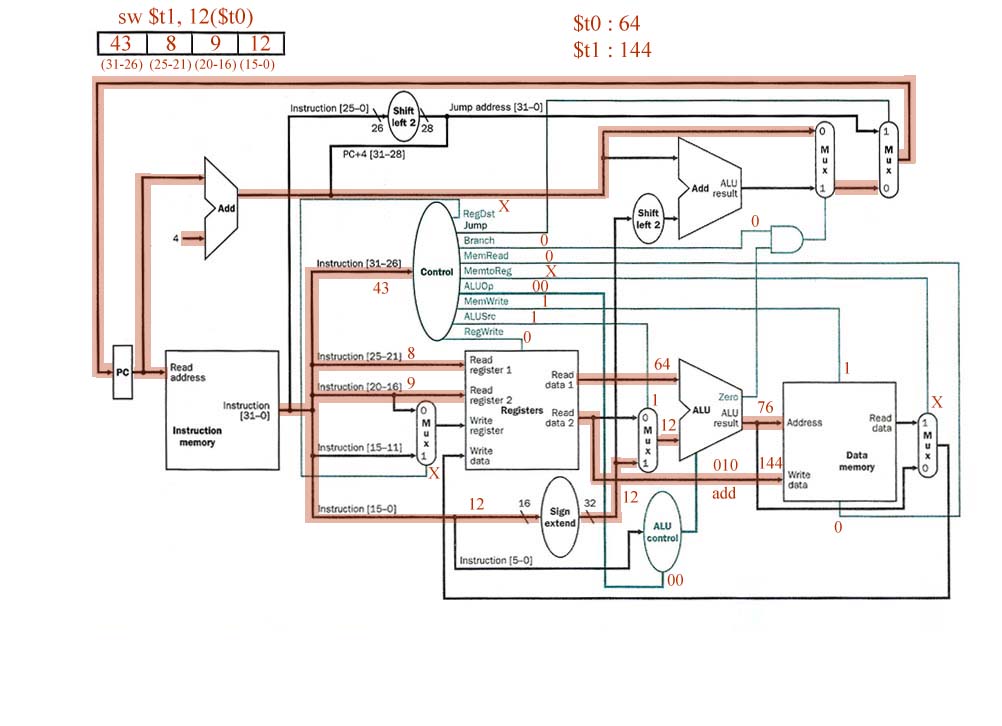

  • sw

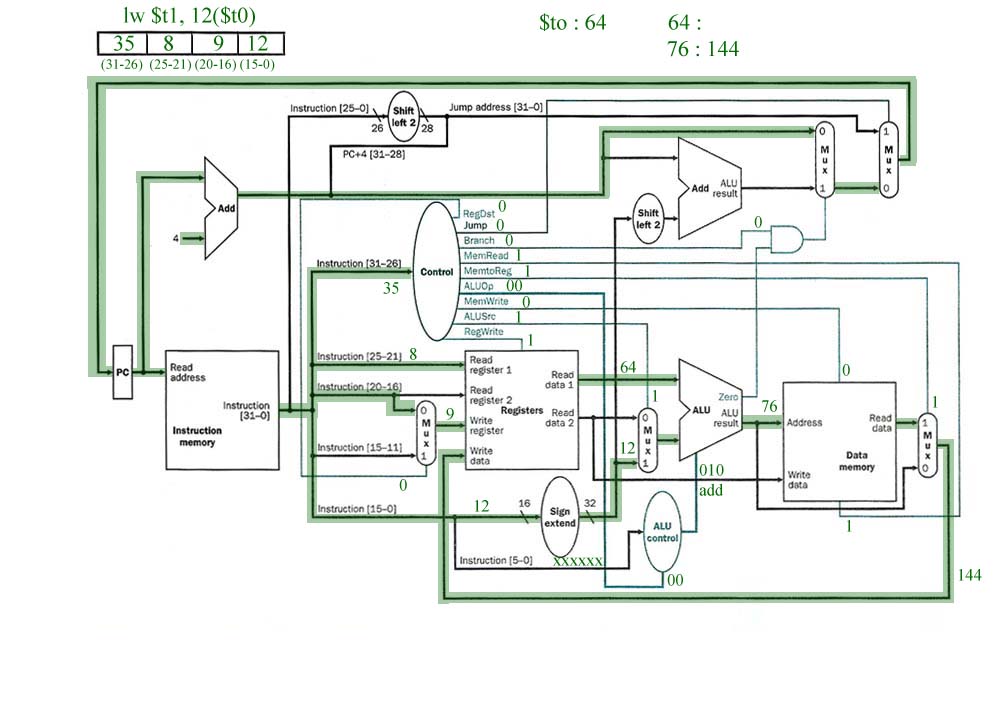

  • lw
• Single-cycle implementation (all PDF), first color, then Black/White:
  • add,    BW version.
  • beq,    BW version.
  • sw,    BW version.
  • lw,    BW version.

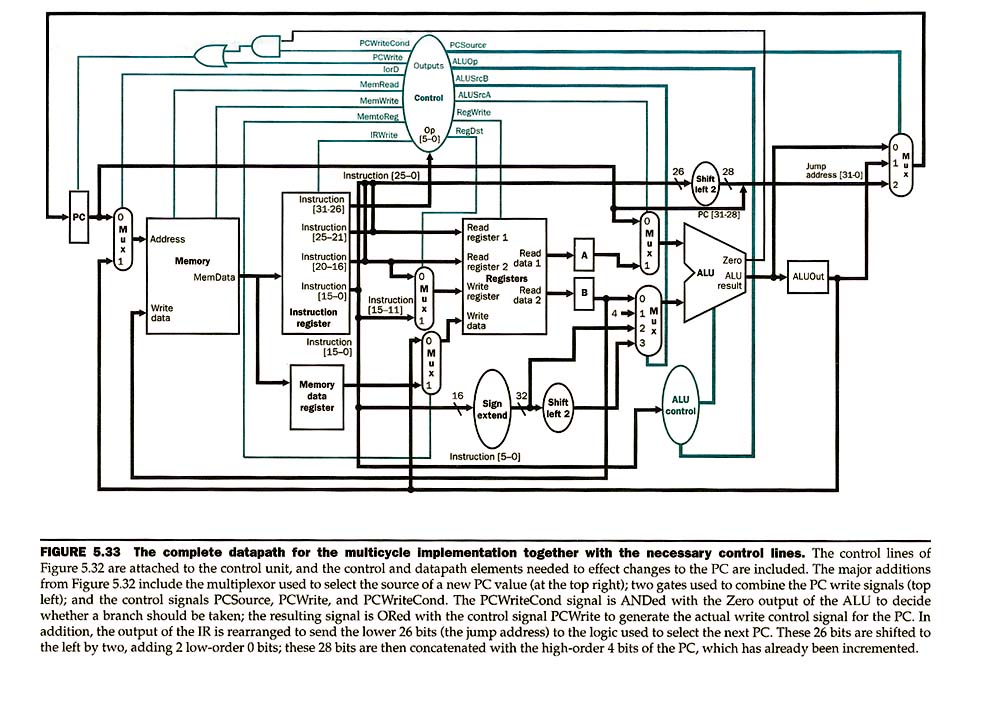

• Multi-cycle implementation (all JPG, from Megan Feeley):
  • Original File

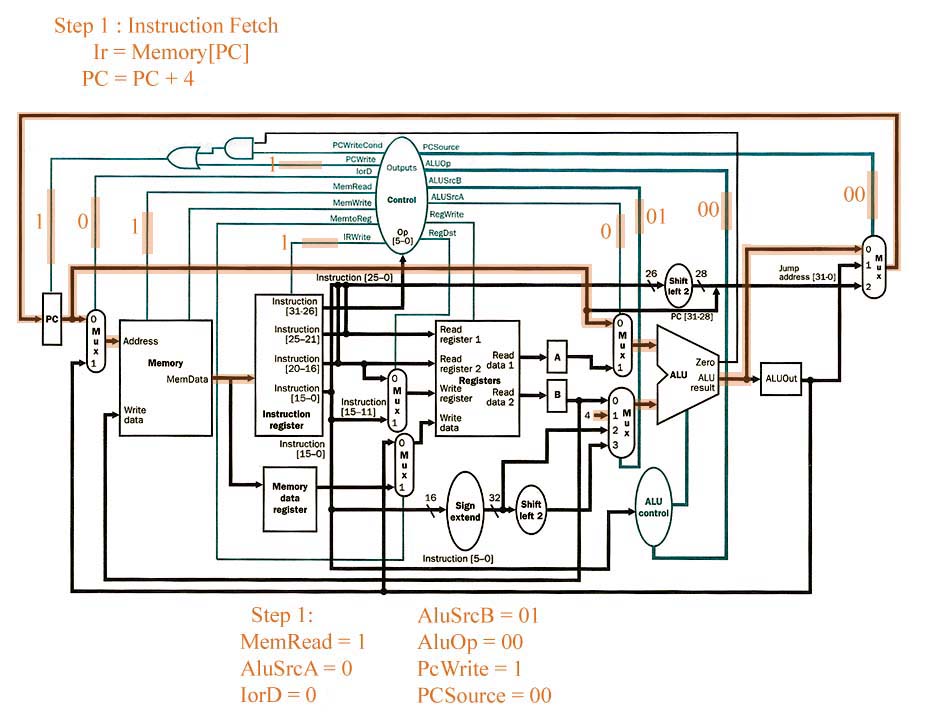

  • All: Step 1

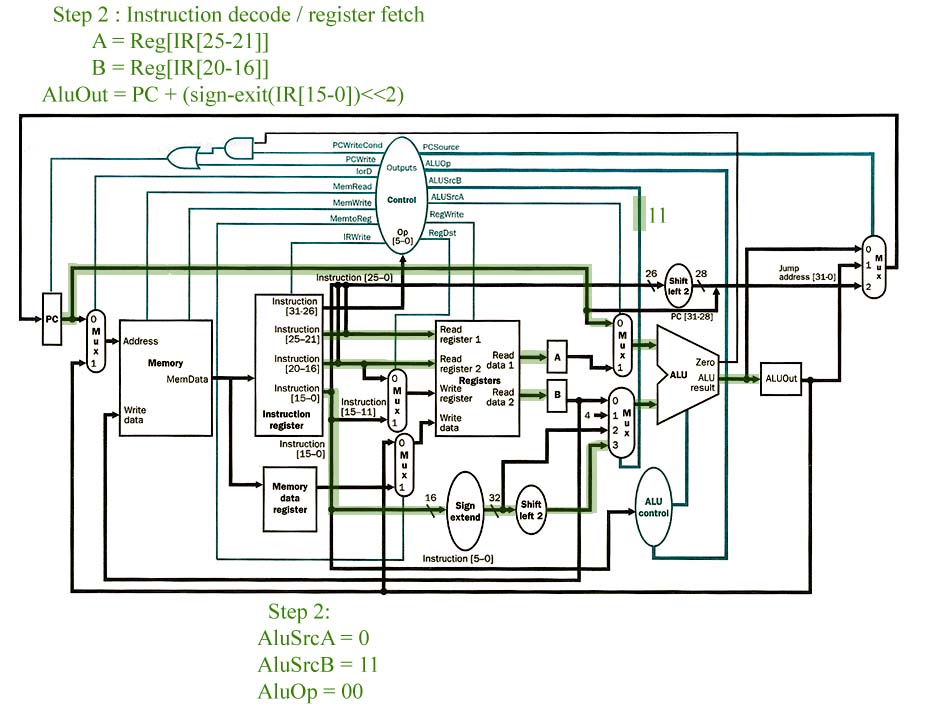

  • All: Step 2
  • R-Type: Step 3

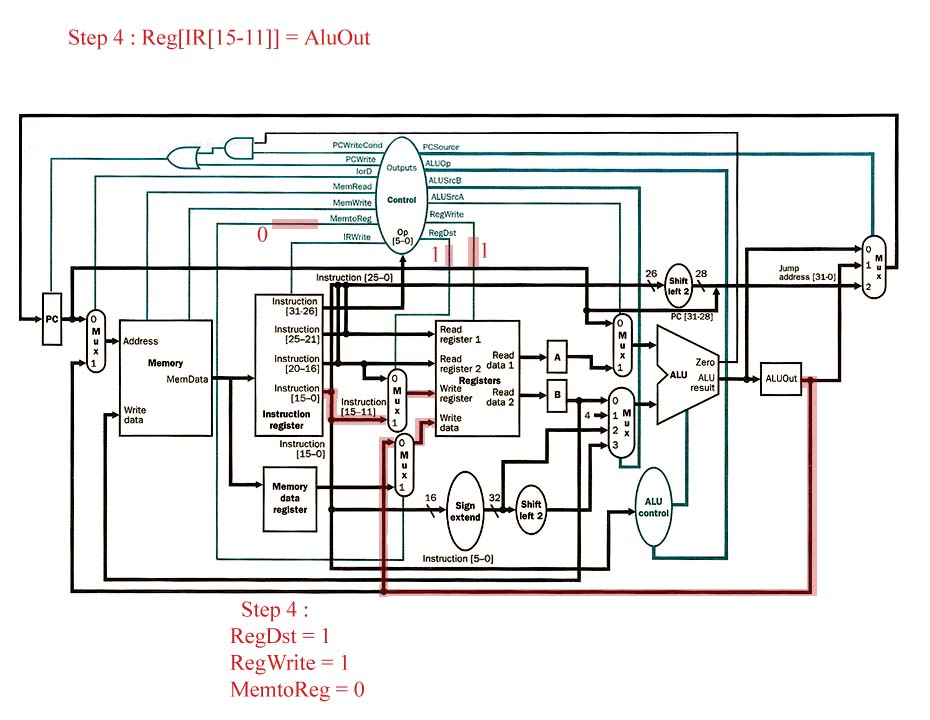

  • R-Type: Step 4

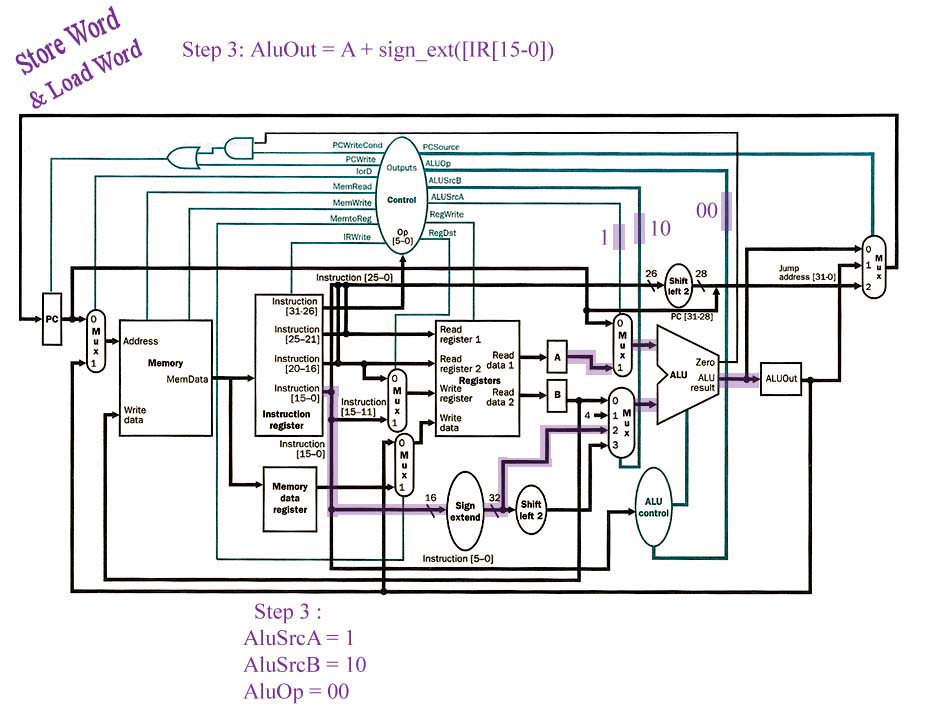

  • Store/Load: Step 3

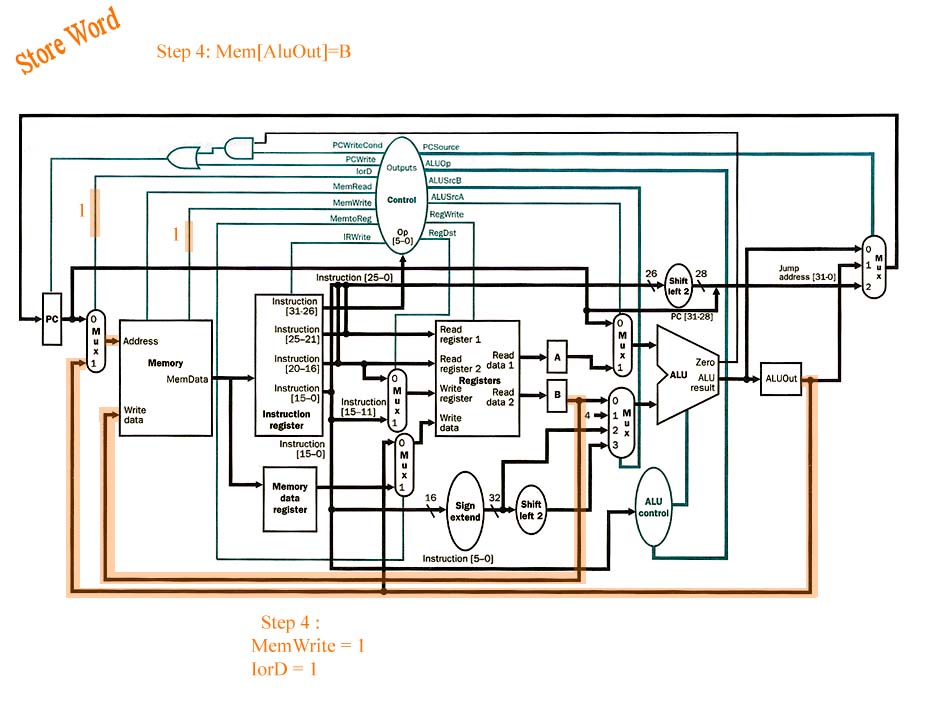

  • Store: Step 4

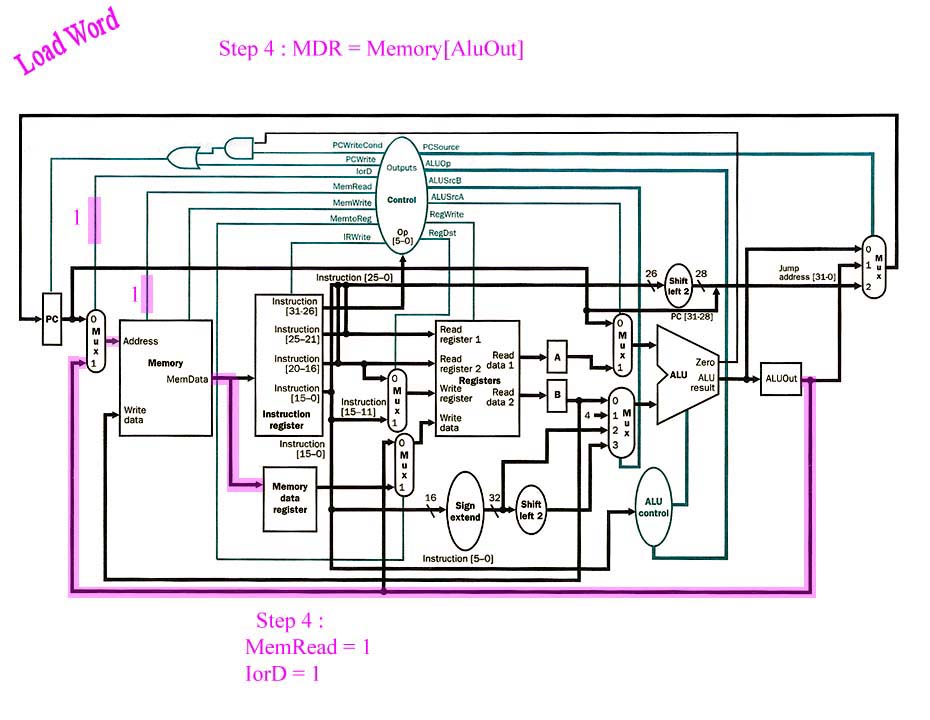

  • Load: Step 4
  • Load: Step 5

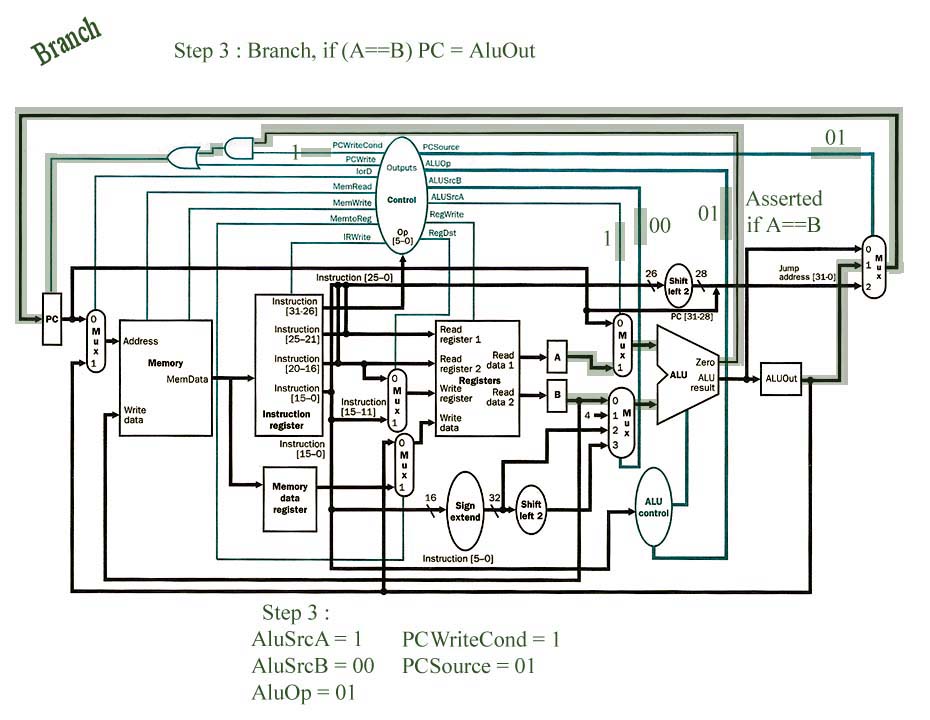

  • Branch: Step 3

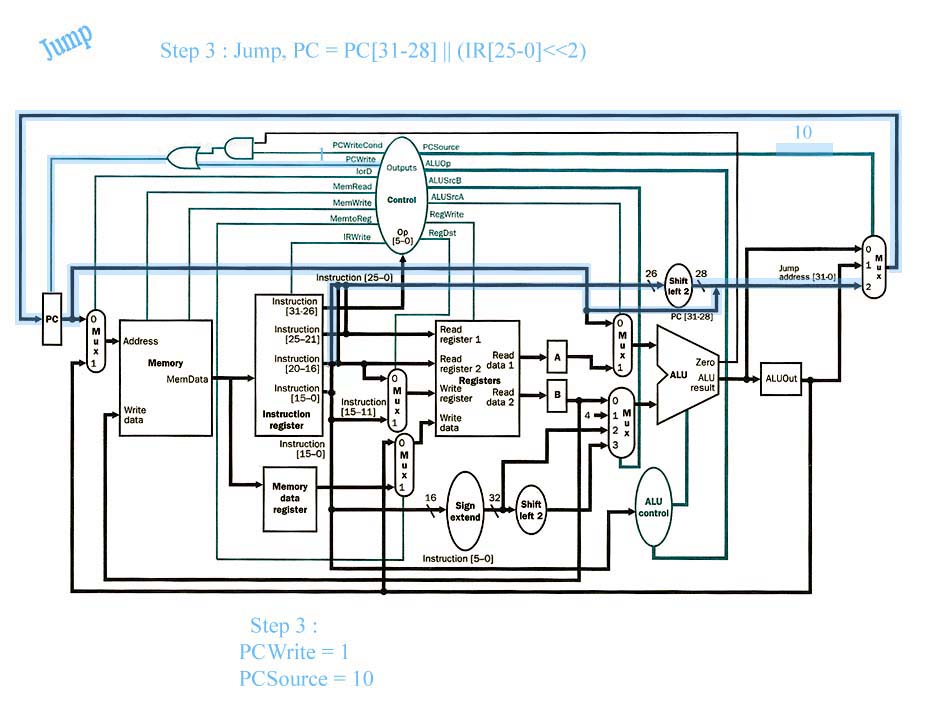

  • Jump: Step 3
• Multi-cycle implementation (all PDF), first color, then Black/White:
  • Cycles 1 and 2,    BW version (Common to all instructions).
  • R-Type: Cycles 3 and 4,    BW version.
  • Store: Cycles 3 and 4,    BW version.
  • Load: Cycles 4 and 5,    BW version (Cycle 3 is the same as for Store).
  • Branch: Cycle 3,  BW version.
  • Jump: Cycles 3,  BW version.

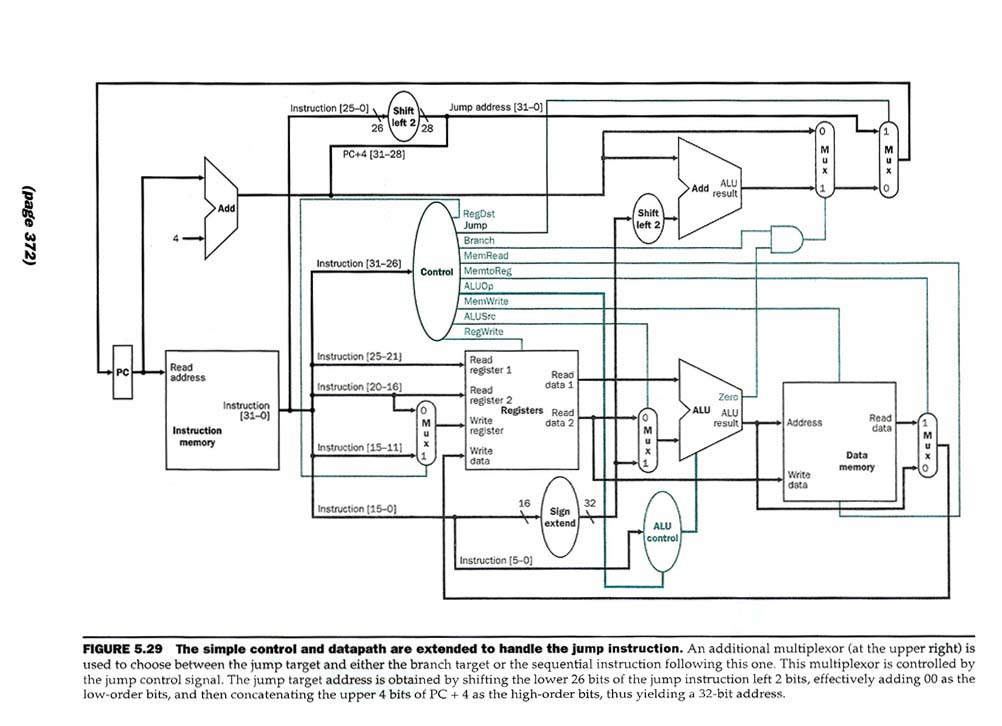

• Scanned diagrams from text (for use as worksheets, all PDF):
  • Single Cycle
  • Multi Cycle,
  • Multi Cycle with Exceptions
• All Figures from the 2nd Edition: PDF

Other Materials:

• Lecture Notes for the Course by Kay A. Robbin (1998): Notes.
• Spim simulator (open source version): here (provided by Orlando Padilla).
• Appendix A of text: PDF version.
• Intel's Itanium processor: Itanium.
