 10.2  Graph Algorithm:
Knight's Tour

Knight's Tour: A knight's tour is sequence of knight moves on an N-by-N chess board that visits each square exactly once and ends where it started. This is called a Hamiltonian Cycle of the board, using knight moves. Such cycles exist only for N even and greater than or equal to 6.

5 30
(5,0)		 31
(5,1)		 32
(5,2)		 33
(5,3)		 34
(5,4)		 35
(5,5)
4 24
(4,0)		 25
(4,1)		 26
(4,2)		 27
(4,3)		 28
(4,4)		 29
(4,5)
3 18
(3,0)		 19
(3,1)		 20
(3,2)		 21
(3,3)		 22
(3,4)		 23
(3,5)
2 12
(2,0)		 13
(2,1)		 14
(2,2)		 15
(2,3)		 16
(2,4)		 17
(2,5)
1 6
(1,0)		 7
(1,1)		 8
(1,2)		 9
(1,3)		 10
(1,4)		 11
(1,5)
0 0
(0,0)		 1
(0,1)		 2
(0,2)		 3
(0,3)		 4
(0,4)		 5
(0,5)
 012 345
   The board has N rows and N columns, each numbered from 0 to N-1. The squares are also numbered sequentially from 0 to N*N-1, inclusive (the red numbers). So a square is also given by a pair of integers, giving row first and then column (the green pairs). Thus (2,4) is row 2 and column 4. In case N is 6 (as shown at the left), this is also square 16. Here are functions to convert back and forth between the two ways to represent a square:
    def itot(i): # 0 <= i < N
    return (i//N, i%N)

def ttoi(t): # 0 <= t[i] < 6, i = 0, 1
    return t[0]*N + t[1]
At the left is a 6-by-6 board.

Below is a program that first constructs the graph for the tour, and then carries out a recursive backtracking search for paths starting at a given node. The search space is so large that this is not a very satisfactory approach.

The program uses the list moves to find the next knight moves. Here it adds or subtracts either 2 or 3 from the previous coordinates, and then checks if the result is still on the board -- up to 8 legal moves. (I'm still going to try other possible kinds of knight moves someday. These are called "grasshoppers".)

The program starts at square 0. There are only two moves next, and then only two ways to finsh a circuit.

nKnight's Tour, Using a Recursive Backtracking Search
 Class Graph (file: graph.py) Knight's Tour (file: knight.py)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

# graph.py: class giving adjacency list graph
import sys

class Graph(object):
    def __init__(self):
        self.__numV = 0 # num of vertices
        self.__g = []
    # insert/put stuff ###############
    def insertVertex(self, d=None):
        self.__numV += 1
        self.__g.append([d, []])
    def insertEdge(self, u, v, d=None):
        self.__g[u][1].append([v,d]);
    def putVertexData(self, v, d):
        self.__g[v][0] = d
    def putEdgeData(self, u, v, d):
        # assumes unique edges
        for w in self.__g[u][1]:
            if w[0] == v:
                w[1] = d
                return
    # get stuff ######################
    def getNumV(self):
        return self.__numV
    def getVertexData(self, u):
        return self.__g[u][0]
    def getEdgeData(self, u, v):
        for w in self.__g[u][1]:
            if w[0] == v:
                return w[1]
        return None
    def getAdjList(self, u, d):
        ret = []
        if u < 0 or u >= self.__numV:
            return None
        elif len(self.__g[u][1]) == 0:
            return None
        else:
            t = len(self.__g[u][1])
            for i in range(0,t):
                if self._g[u][1][i][1] == d:
                  ret.append(self.\
                    __g[u][1][i][0])
            return ret
    # print stuff ####################
    def printGraph(self):
        sys.stdout.write("g = [\n")
        for i in range(len(self.__g)):
            sys.stdout.write(str(self.__g[i])
              + ", # " + str(i) + '\n')
        sys.stdout.write("]\n")

# knight0.py: backtracking search
import sys
from graph import *
N = 6 # size of chessboard
start = 0

# convert chess coordinates
def itot(i):
    return (i//N, i%N)
def ttoi(t):
    return t[0]*N + t[1]

k1, k2 = 1, 2 # knight moves
moves=[(k1,k2),(-k1,k2),(k1,-k2),(-k1,-k2),
       (k2,k1),(-k2,k1),(k2,-k1),(-k2,-k1)]

# construct graph
g = Graph()
for i in range(N*N):
    g.insertVertex(0) # 0 means color white
    t = itot(i)
    for j in range(8):
        # try move j
        s = moves[j]
        if 0 <= (t[0]+s[0]) < N and\
           0 <= (t[1]+s[1]) < N:
            g.insertEdge(i,ttoi((t[0]+s[0],
              t[1]+s[1])),None)

# carry out recursive backtracking search
st = []
def tour(u, pathlen):
    st.append(u)
    if pathlen > N*N - 2:
        if st[N*N-1] == N+2 or \
              st[N*N-1] == 2*N+1:
            st.append(st[0])
            sys.stdout.write("path: " +
              str(st)+'\n')
    g.putVertexData(u,1) # color is black
    # each edge datum is None
    for v in g.getAdjList(u, None):
        if g.getVertexData(v) == 0: # white
            # recursive call
            tour(v, pathlen+1)
            # returned somehow
    # done with adj list
    g.putVertexData(u, 0) # white, key step
    st.pop() # also pop stack
tour(start, 0)
nInternal form of Graph, many blanks deleted (file: graph6)
g = [
[0,[[ 8,None],[13,None]]], # 0
[0,[[ 9,None],[14,None],[12,None]]], # 1
[0,[[10,None],[ 6,None],[15,None],[13,None]]], # 2
[0,[[11,None],[ 7,None],[16,None],[14,None]]], # 3
[0,[[ 8,None],[17,None],[15,None]]], # 4
[0,[[ 9,None],[16,None]]], # 5
[0,[[14,None],[ 2,None],[19,None]]], # 6
[0,[[15,None],[ 3,None],[20,None],[18,None]]], # 7
[0,[[16,None],[ 4,None],[12,None],[ 0,None],[21,None],[19,None]]], # 8
[0,[[17,None],[ 5,None],[13,None],[ 1,None],[22,None],[20,None]]], # 9
[0,[[14,None],[ 2,None],[23,None],[21,None]]], # 10
[0,[[15,None],[ 3,None],[22,None]]], # 11
[0,[[20,None],[ 8,None],[25,None],[ 1,None]]], # 12
[0,[[21,None],[ 9,None],[26,None],[ 2,None],[24,None],[ 0,None]]], # 13
[0,[[22,None],[10,None],[18,None],[ 6,None],[27,None],[ 3,None],[25,None],[1,None]]], # 14
[0,[[23,None],[11,None],[19,None],[ 7,None],[28,None],[ 4,None],[26,None],[2,None]]], # 15
[0,[[20,None],[ 8,None],[29,None],[ 5,None],[27,None],[ 3,None]]], # 16
[0,[[21,None],[ 9,None],[28,None],[ 4,None]]], # 17
[0,[[26,None],[14,None],[31,None],[ 7,None]]], # 18
[0,[[27,None],[15,None],[32,None],[ 8,None],[30,None],[ 6,None]]], # 19
[0,[[28,None],[16,None],[24,None],[12,None],[33,None],[ 9,None],[31,None],[7,None]]], # 20
[0,[[29,None],[17,None],[25,None],[13,None],[34,None],[10,None],[32,None],[8,None]]], # 21
[0,[[26,None],[14,None],[35,None],[11,None],[33,None],[ 9,None]]], # 22
[0,[[27,None],[15,None],[34,None],[10,None]]], # 23
[0,[[32,None],[20,None],[13,None]]], # 24
[0,[[33,None],[21,None],[14,None],[12,None]]], # 25
[0,[[34,None],[22,None],[30,None],[18,None],[15,None],[13,None]]], # 26
[0,[[35,None],[23,None],[31,None],[19,None],[16,None],[14,None]]], # 27
[0,[[32,None],[20,None],[17,None],[15,None]]], # 28
[0,[[33,None],[21,None],[16,None]]], # 29
[0,[[26,None],[19,None]]], # 30
[0,[[27,None],[20,None],[18,None]]], # 31
[0,[[28,None],[24,None],[21,None],[19,None]]], # 32
[0,[[29,None],[25,None],[22,None],[20,None]]], # 33
[0,[[26,None],[23,None],[21,None]]], # 34
[0,[[27,None],[22,None]]], # 35
]
Sample Output Tour
[ 0,  8, 16,  5,  9,  1, 14,  3, 11, 22, 35, 27, 31, 18,  7, 15,  4, 17, 28, 32,
 24, 20, 12, 25, 33, 29, 21, 34, 23, 10,  2,  6, 19, 30, 26, 13,  0]

Notice that the "internal form" above could be used as an assignment inside a program to define this graph. It would be better to use json to input it, but I haven't gotten that to work yet.

The final trailing comma inside the list at the top level makes no difference -- it doesn't change the length of the list.

In the specific search above, the program got off to a bad search start, first going to 8 and then a bit later to 13, so it was impossible to finish a tour until it had backtracked past the 13. It labored for hours (and almost a billion knight moves) before coming up with hundreds of tours.

Given this difficulty with N = 6, the case N = 8 is already not feasible using this approach.

A Heuristic to Improve the Search: In the online course: Problem Solving with Algorithms and Data Structures, the section: Knight's Tour Analysis suggests choosing each knight move to the square with the least number of possible further moves.

nKnight's Tour, Using a Recursive Backtracking Search
  Knight's Tour (file: knight.py)
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

# knight.py: heuristic search
import sys
from graph import *

if len(sys.argv) != 2:
    sys.stdout.write("Usage: ")
    sys.stdout.write("python knight.py 6\n")
    sys.exit()

N = int(sys.argv[1]) # size of chessboard
start = N + 2

# convert chess coordinates
def itot(i):
    return (i//N, i%N)
def ttoi(t):
    return t[0]*N + t[1]

k1, k2 = 1, 2 # knight moves
moves=[(k1,k2),(-k1,k2),(k1,-k2),(-k1,-k2),
       (k2,k1),(-k2,k1),(k2,-k1),(-k2,-k1)]

# stuff related to reordering adj lists
def entries(i, j):
    e = []
    for k in range(8):
        s = moves[k]
        if 0 <= i + s[0] < N and\
           0 <= j + s[1] < N:
            e.append(ttoi([i+s[0], j+s[1]]))
    return e

# create graph
g = Graph()
for i in range(N*N):
    g.insertVertex(0) # 0 is color white
    t = itot(i)
    for j in range(8):
        # try move j
        s = moves[j]
        if 0 <= (t[0]+s[0]) < N and\
           0 <= (t[1]+s[1]) < N:
            g.insertEdge(i,ttoi((t[0]+s[0],
              t[1]+s[1])),None)
# carry out recursive backtracking search
st = []
def tour(u, pathlen):
    st.append(u)
    if pathlen > N*N - 2:
        if st[N*N-1] in entries(start//N,
          start%N):
            st.append(st[0])
            sys.stdout.write("path: " +
              str(st)+'\n')
            sys.exit()
    g.putVertexData(u,1) # color is black
    # first reorder the adj list
    adj = g.getAdjList(u, None)
    adj.sort(key=lambda x: \
len(entries(x//N,x%N)))
    # each edge datum is None
    for v in adj:
        if g.getVertexData(v) == 0: # white
            # recursive call
            tour(v, pathlen+1)
            # returned somehow
    # done with adj list
    g.putVertexData(u, 0) # white, key step
    st.pop() # also pop stack
tour(start, 0)
Output
  0   1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19
% python knight.py 6
[ 8,  0, 13, 24, 32, 28, 17,  4, 15, 11,  3,  7, 18, 31, 27, 35, 22, 33, 29, 21,
 25, 12, 20, 16,  5,  9,  1, 14,  6,  2, 10, 23, 34, 26, 30, 19,  8]
% python knight.py 8
[10,  0, 17,  2,  8, 25, 40, 57, 51, 61, 55, 38, 23,  6, 12, 22,  7, 13,  3,  9,
 24, 41, 56, 50, 60, 54, 39, 45, 62, 47, 53, 63, 46, 31, 14,  4, 21, 15,  5, 11,
  1, 16, 33, 48, 58, 52, 42, 32, 49, 59, 44, 34, 28, 18, 35, 29, 19, 36, 30, 20,
 26, 43, 37, 27, 10]
% python knight.py 10
[12,  0, 21,  2, 10, 31, 50, 71, 90, 82, 94, 86, 98, 79, 87, 99, 78, 59, 38, 19,
  7, 15,  3, 11, 30, 51, 70, 91, 83, 95, 76, 88, 96, 84, 92, 80, 61, 40, 52, 60,
 81, 93, 85, 97, 89, 68, 49, 28,  9, 17, 29,  8, 16,  4, 25,  6, 18, 39, 58, 66,
 74, 62, 41, 20,  1, 13,  5, 26, 14, 22, 34, 46, 54, 73, 65, 77, 69, 57, 36, 44,
 23, 42, 63, 75, 67, 48, 27, 35, 47, 55, 43, 24, 32, 53, 72, 64, 56, 37, 45, 33,
 12]

  0   1   2   3   4   5   6   7   8   9  10  11  12  13  14  15  16  17  18  19

The main implementation problem was to sort each adjacency list in order of increasing number of possible next moves (least number of possibilities first). The program uses a function entries which returns the possible next moves as a list. Then the adjacency list, called adj, is sorted using the method sort, and the length of the number of possible moves as the key.

This kind of sort is more frequently used in an example such as the one below, where one wants to ignore case when sorting strings. The only advantage of the lambda below is to shorten the code and to avoid another function name.

    Use of sort method
    import sys
a = ['Neal', 'ned', 'joe', 'James', 'Ted', 'shaw', 'Shaw', ]
b = a
c = a
a.sort() # normal in-place sort
sys.stdout.write(str(a) + '\n')
b.sort(key = lambda n: n.lower()) # using lambda function
sys.stdout.write(str(b) + '\n')

def low(x):
    return x.lower()
c.sort(key = low) # using separate function
sys.stdout.write(str(c) + '\n')
% python test_sort2.py
['James', 'Neal', 'Shaw', 'Ted', 'joe', 'ned', 'shaw']
['James', 'joe', 'Neal', 'ned', 'Shaw', 'shaw', 'Ted']
['James', 'joe', 'Neal', 'ned', 'Shaw', 'shaw', 'Ted']

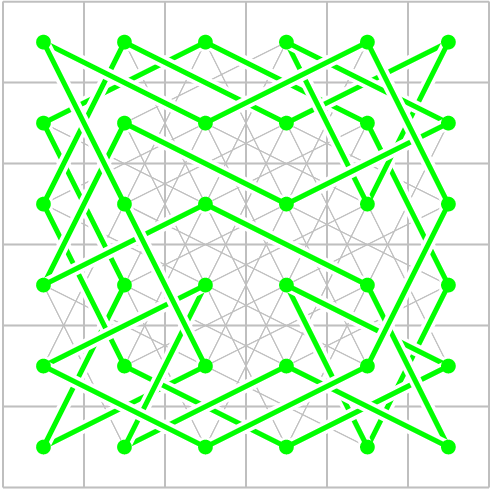

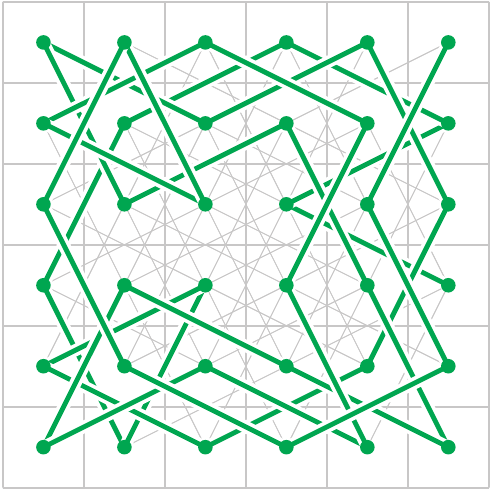

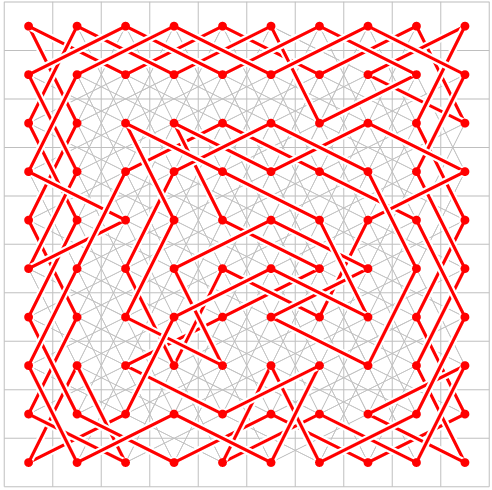

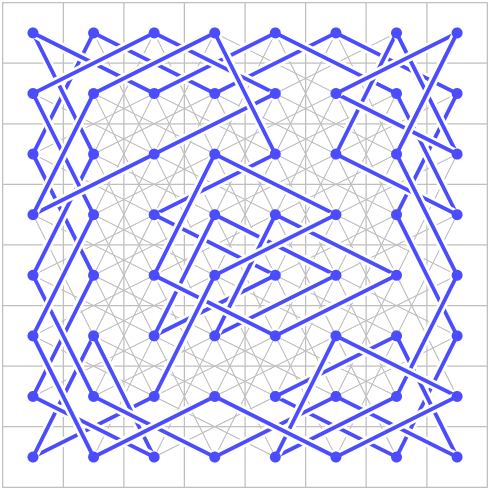

Here are pictures of three results of the heuristic technique above for sizes 6, 8, and 10, starting in each case so that the next move goes to square 0. The picture uses Postscript as described in the next section.

Because of the heuristic, the first two each finished in less than a second. Even with the heuristic, the third one took several hours.

.pdf .pdf .pdf

Postscript Pictures of Tours: I use several programs to generate a Postscript program that will illustrate a given knight's path.

  • The blue parts of the program above generate most of the blue code below (except for a little at the beginning and the end). This code directly draws 362 lines that are the edges of the graph for the knight moves. The code is contained in the file: knight6.init.txt.

  • I wrote the red code in the program below by hand. This code draws the 36 vertices (Postscript function circles); it draws the chessboard "grid" (Postscript function grid); and it draws each individual line of the path (Postscript function xlineto). This last draws each path segment as a wide white line with a narrower red line overwriting it. The code is contained in the file: knight6.term.txt.

  • The black code in the program above is generated from the sequence of vertices in the path or tour, using the program at the bottom below.

Knight's Tour, Generate Postscript Picture (file: path6.ps)
%!PS-Adobe-2.0
/Black{0 0 0 1 setcmykcolor} def
/White{0 0 0 0 setcmykcolor} def
/Gray{0 0 0 0.25 setcmykcolor} def
/Green{1 0 1 0 setcmykcolor} def
/Red{0 1 1 0 setcmykcolor} def
/N 6 def
/moves {
0 0 moveto 1 2 lineto stroke   0 0 moveto 2 1 lineto stroke
0 1 moveto 1 3 lineto stroke   0 1 moveto 2 2 lineto stroke
0 1 moveto 2 0 lineto stroke   0 2 moveto 1 4 lineto stroke
0 2 moveto 1 0 lineto stroke   0 2 moveto 2 3 lineto stroke
0 2 moveto 2 1 lineto stroke   0 3 moveto 1 5 lineto stroke
0 3 moveto 1 1 lineto stroke   0 3 moveto 2 4 lineto stroke
0 3 moveto 2 2 lineto stroke   0 4 moveto 1 2 lineto stroke
0 4 moveto 2 5 lineto stroke   0 4 moveto 2 3 lineto stroke
0 5 moveto 1 3 lineto stroke   0 5 moveto 2 4 lineto stroke
1 0 moveto 2 2 lineto stroke   1 0 moveto 0 2 lineto stroke
1 0 moveto 3 1 lineto stroke   1 1 moveto 2 3 lineto stroke
1 1 moveto 0 3 lineto stroke   1 1 moveto 3 2 lineto stroke
1 1 moveto 3 0 lineto stroke   1 2 moveto 2 4 lineto stroke
1 2 moveto 0 4 lineto stroke   1 2 moveto 2 0 lineto stroke
1 2 moveto 0 0 lineto stroke   1 2 moveto 3 3 lineto stroke
1 2 moveto 3 1 lineto stroke   1 3 moveto 2 5 lineto stroke
1 3 moveto 0 5 lineto stroke   1 3 moveto 2 1 lineto stroke
1 3 moveto 0 1 lineto stroke   1 3 moveto 3 4 lineto stroke
1 3 moveto 3 2 lineto stroke   1 4 moveto 2 2 lineto stroke
1 4 moveto 0 2 lineto stroke   1 4 moveto 3 5 lineto stroke
1 4 moveto 3 3 lineto stroke   1 5 moveto 2 3 lineto stroke
1 5 moveto 0 3 lineto stroke   1 5 moveto 3 4 lineto stroke
2 0 moveto 3 2 lineto stroke   2 0 moveto 1 2 lineto stroke
2 0 moveto 4 1 lineto stroke   2 0 moveto 0 1 lineto stroke
2 1 moveto 3 3 lineto stroke   2 1 moveto 1 3 lineto stroke
2 1 moveto 4 2 lineto stroke   2 1 moveto 0 2 lineto stroke
2 1 moveto 4 0 lineto stroke   2 1 moveto 0 0 lineto stroke
2 2 moveto 3 4 lineto stroke   2 2 moveto 1 4 lineto stroke
2 2 moveto 3 0 lineto stroke   2 2 moveto 1 0 lineto stroke
2 2 moveto 4 3 lineto stroke   2 2 moveto 0 3 lineto stroke
2 2 moveto 4 1 lineto stroke   2 2 moveto 0 1 lineto stroke
2 3 moveto 3 5 lineto stroke   2 3 moveto 1 5 lineto stroke
2 3 moveto 3 1 lineto stroke   2 3 moveto 1 1 lineto stroke
2 3 moveto 4 4 lineto stroke   2 3 moveto 0 4 lineto stroke
2 3 moveto 4 2 lineto stroke   2 3 moveto 0 2 lineto stroke
2 4 moveto 3 2 lineto stroke   2 4 moveto 1 2 lineto stroke
2 4 moveto 4 5 lineto stroke   2 4 moveto 0 5 lineto stroke
2 4 moveto 4 3 lineto stroke   2 4 moveto 0 3 lineto stroke
2 5 moveto 3 3 lineto stroke   2 5 moveto 1 3 lineto stroke
2 5 moveto 4 4 lineto stroke   2 5 moveto 0 4 lineto stroke
3 0 moveto 4 2 lineto stroke   3 0 moveto 2 2 lineto stroke
3 0 moveto 5 1 lineto stroke   3 0 moveto 1 1 lineto stroke
3 1 moveto 4 3 lineto stroke   3 1 moveto 2 3 lineto stroke
3 1 moveto 5 2 lineto stroke   3 1 moveto 1 2 lineto stroke
3 1 moveto 5 0 lineto stroke   3 1 moveto 1 0 lineto stroke
3 2 moveto 4 4 lineto stroke   3 2 moveto 2 4 lineto stroke
3 2 moveto 4 0 lineto stroke   3 2 moveto 2 0 lineto stroke
3 2 moveto 5 3 lineto stroke   3 2 moveto 1 3 lineto stroke
3 2 moveto 5 1 lineto stroke   3 2 moveto 1 1 lineto stroke
3 3 moveto 4 5 lineto stroke   3 3 moveto 2 5 lineto stroke
3 3 moveto 4 1 lineto stroke   3 3 moveto 2 1 lineto stroke
3 3 moveto 5 4 lineto stroke   3 3 moveto 1 4 lineto stroke
3 3 moveto 5 2 lineto stroke   3 3 moveto 1 2 lineto stroke
3 4 moveto 4 2 lineto stroke   3 4 moveto 2 2 lineto stroke
3 4 moveto 5 5 lineto stroke   3 4 moveto 1 5 lineto stroke
3 4 moveto 5 3 lineto stroke   3 4 moveto 1 3 lineto stroke
3 5 moveto 4 3 lineto stroke   3 5 moveto 2 3 lineto stroke
3 5 moveto 5 4 lineto stroke   3 5 moveto 1 4 lineto stroke
4 0 moveto 5 2 lineto stroke   4 0 moveto 3 2 lineto stroke
4 0 moveto 2 1 lineto stroke   4 1 moveto 5 3 lineto stroke
4 1 moveto 3 3 lineto stroke   4 1 moveto 2 2 lineto stroke
4 1 moveto 2 0 lineto stroke   4 2 moveto 5 4 lineto stroke
4 2 moveto 3 4 lineto stroke   4 2 moveto 5 0 lineto stroke
4 2 moveto 3 0 lineto stroke   4 2 moveto 2 3 lineto stroke
4 2 moveto 2 1 lineto stroke   4 3 moveto 5 5 lineto stroke
4 3 moveto 3 5 lineto stroke   4 3 moveto 5 1 lineto stroke
4 3 moveto 3 1 lineto stroke   4 3 moveto 2 4 lineto stroke
4 3 moveto 2 2 lineto stroke   4 4 moveto 5 2 lineto stroke
4 4 moveto 3 2 lineto stroke   4 4 moveto 2 5 lineto stroke
4 4 moveto 2 3 lineto stroke   4 5 moveto 5 3 lineto stroke
4 5 moveto 3 3 lineto stroke   4 5 moveto 2 4 lineto stroke
5 0 moveto 4 2 lineto stroke   5 0 moveto 3 1 lineto stroke
5 1 moveto 4 3 lineto stroke   5 1 moveto 3 2 lineto stroke
5 1 moveto 3 0 lineto stroke   5 2 moveto 4 4 lineto stroke
5 2 moveto 4 0 lineto stroke   5 2 moveto 3 3 lineto stroke
5 2 moveto 3 1 lineto stroke   5 3 moveto 4 5 lineto stroke
5 3 moveto 4 1 lineto stroke   5 3 moveto 3 4 lineto stroke
5 3 moveto 3 2 lineto stroke   5 4 moveto 4 2 lineto stroke
5 4 moveto 3 5 lineto stroke   5 4 moveto 3 3 lineto stroke
5 5 moveto 4 3 lineto stroke   5 5 moveto 3 4 lineto stroke
} def

/path {
5 2 3 3 xlineto
3 3 5 4 xlineto
5 4 3 5 xlineto
3 5 1 4 xlineto
1 4 0 2 xlineto
0 2 1 0 xlineto
1 0 2 2 xlineto
2 2 0 1 xlineto
0 1 2 0 xlineto
2 0 4 1 xlineto
4 1 5 3 xlineto
5 3 4 5 xlineto
4 5 2 4 xlineto
2 4 0 5 xlineto
0 5 1 3 xlineto
1 3 3 4 xlineto
3 4 4 2 xlineto
4 2 5 0 xlineto
5 0 3 1 xlineto
3 1 1 2 xlineto
1 2 0 0 xlineto
0 0 2 1 xlineto
2 1 4 0 xlineto
4 0 3 2 xlineto
3 2 4 4 xlineto
4 4 2 5 xlineto
2 5 0 4 xlineto
0 4 2 3 xlineto
2 3 1 5 xlineto
1 5 0 3 xlineto
0 3 1 1 xlineto
1 1 3 0 xlineto
3 0 5 1 xlineto
5 1 4 3 xlineto
4 3 5 5 xlineto
} def

/xlineto {
  /y2 exch def
  /x2 exch def
  /y1 exch def
  /x1 exch def
  gsave
    0.15 setlinewidth White
    x1 y1 moveto
    x2 y2 lineto stroke
  grestore
  0.06 setlinewidth
  x1 y1 moveto
  x2 y2 lineto stroke
} def

/circles {
  0 1 N 1 sub {
    /xloc exch def

    0 1 N 1 sub {
      /yloc exch def
      xloc yloc 0.09
        0 360 arc fill
    } for
  } for
} def

/grid {
  0 1 N {
    /xloc exch def
   -0.5 xloc add -0.5 moveto
   -0.5 xloc add
     N .5 sub lineto
   stroke
  } for

  0 1 N {
    /yloc exch def
   -0.5 -0.5 yloc add moveto
    N .5 sub -0.5
      yloc add lineto
   stroke
  } for
} def

150 200 translate
60 60 scale

0.02 setlinewidth
Gray grid
0.01 setlinewidth
Gray moves
0.04 setlinewidth
Green path
Green circles
showpage

Generate Postscript Code to
to Generate Postscript Picture
(file: path6.py)
# path6.py: get postscript picture of path
import sys

fout = open("path6.ps",'w')
def genf(infile): # output Postscript files
    f = open(infile, 'r')
    for line in f:
        fout.write(line)

N = 6
def itot(i):
    return (i//N, i%N)
def ttoi(t):
    return t[0]*N + t[1]

# successive vertices in a path
tour = [17, 21, 29, 33, 25, 12,  1, 14,
         6,  2, 10, 23, 34, 26, 30, 19,
        27, 16,  5,  9, 13,  0,  8,  4,
        15, 28, 32, 24, 20, 31, 18,  7,
         3, 11, 22, 35]

genf("path6.init.txt")
# write ps code for path edges
for i in range(len(tour)-1):
    (t1, t2) = itot(tour[i])
    (t3, t4) = itot(tour[i+1])
    fout.write(str(t2)+" "+str(t1)+" "+
      str(t4)+" "+str(t3)+" xlineto\n")
genf("path6.term.txt")
Result of path6.ps

.pdf

Constructing Tours:

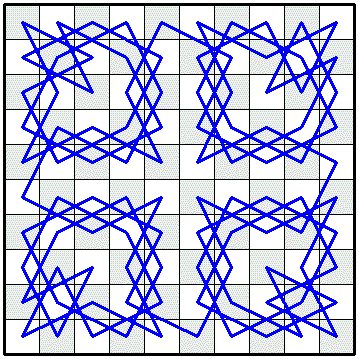

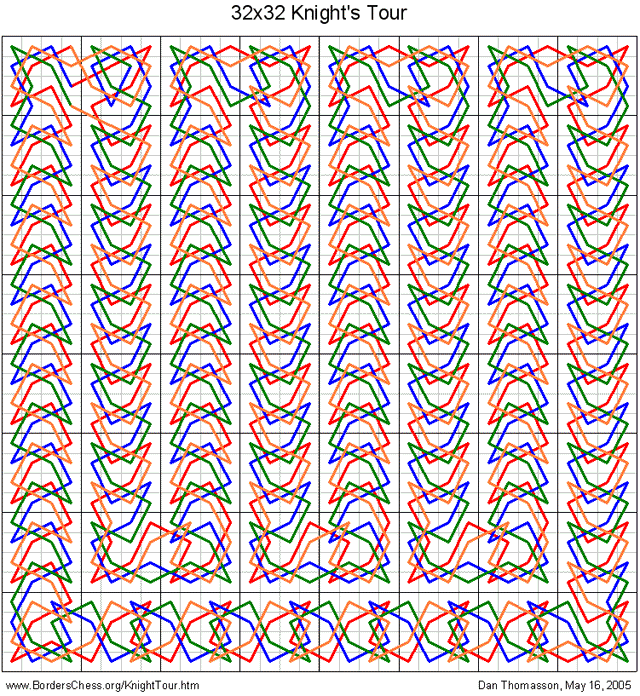

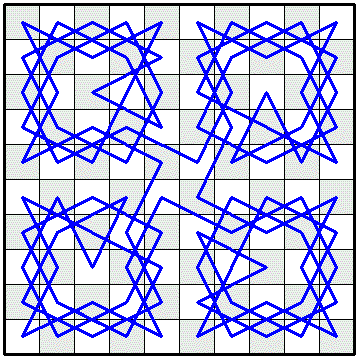

It's clear above that straightforward search is too inefficient to generate knight's tours in a reasonable amount of time even for N = 6. There is a tremendous amount of information about creating tours more efficiently. For example, see The Knight's Tour for many complex constructions, including the two at the right.

(Revision date: 2015-04-14. Please use ISO 8601, the International Standard.)
