CS3343/3341
 Analysis of Algorithms
   Graph Representation

Introduction. In this recitation you will work on a program that will create an internal, linked list representation of an arbitrary graph. The graph can be either directed or undirected, with vertices and edges. There can be information attached to the edges as well as to the vertices. We want to be able to carry out algorithms on these graphs.

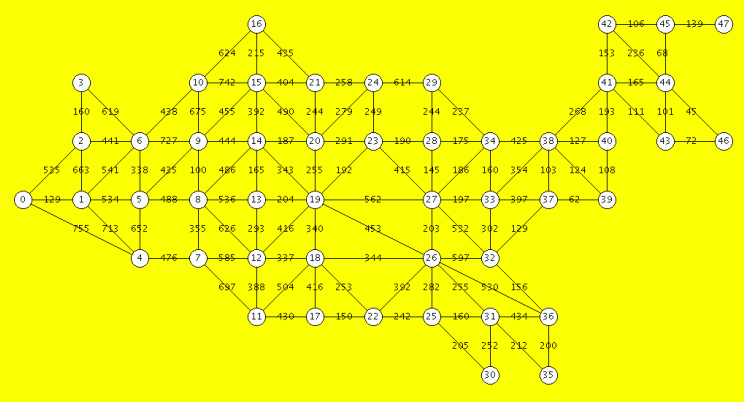

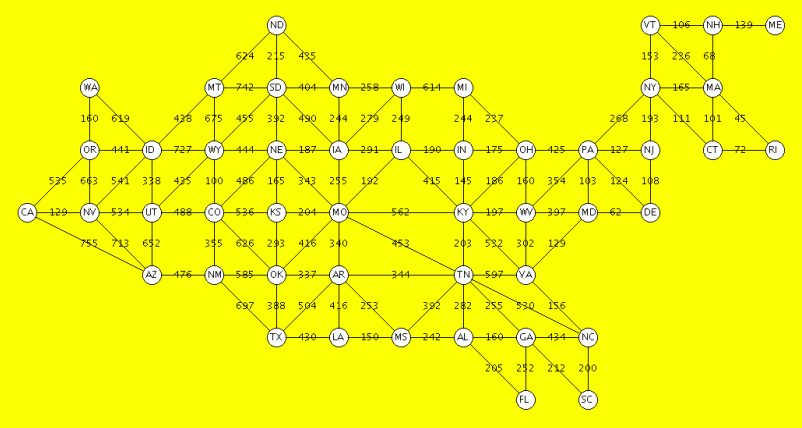

One of the example graphs we will work with consists of the 48 US state capitals, with distances between them. Here is diagram of this graph, with the capitals (vertices) given as integers from 0 to 47. (See here for the names of capitals. The example and layout are due to Donald Knuth.)


US state capitals (larger picture: here)

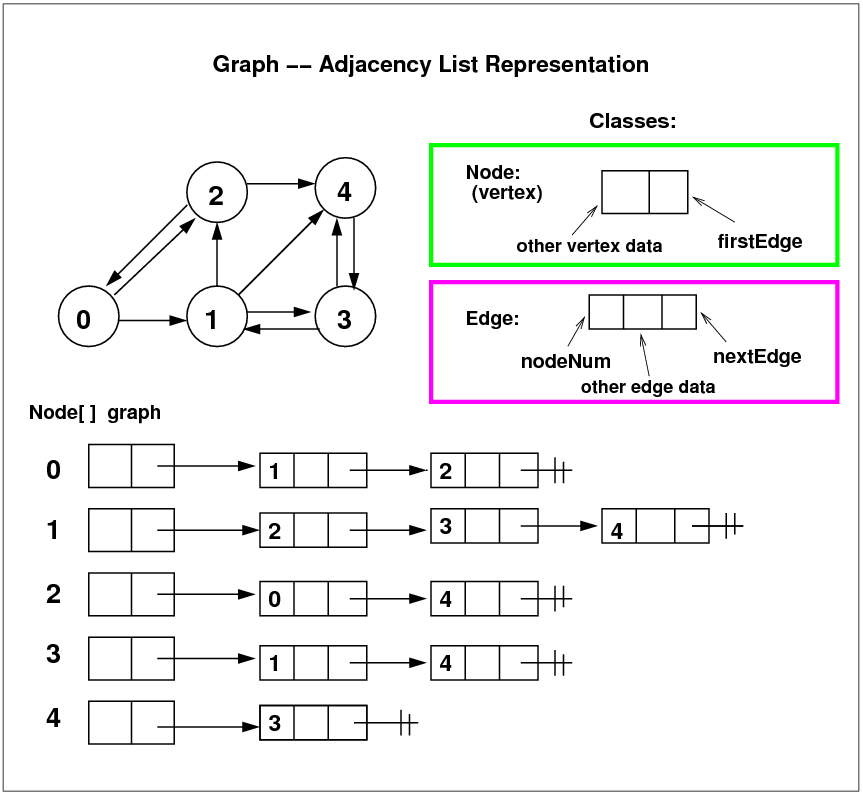

The Representation. For this recitation, you are to write a Java or C program that reads data about a graph (such as the one above) and constructs an adjacency list internal representation of this graph. (See your text, pages 589-592. The alternative to this representation is the adjacency matrix representation, which has advantages and disadvantages when compared with adjacency lists.) Here are pictures of these representation for the same graph:


Click picture for larger image (.png)
Adjacency Matix
Representation
    |  0   1   2   3   4
----+---------------------
  0 |  0   1   1   0   0
    |
  1 |  0   0   1   1   1
    |
  2 |  1   0   0   0   1
    |
  3 |  0   1   0   0   1
    |
  4 |  0   0   0   1   0
entry [i] [j] = 1 means there
is a directed edge from
vertex i to vertex j

You should realize that I wanted the code to be as simple as possible. In particular, this means not using accessor functions for class data members, but instead public data members. (In fact, a version using accessor methods is what I wrote first.) Besides simplicity, this approach matches the algorithms in your text more closely. It is possible to have far more sophisticated graph software, as for example with the programs that Dr. Maynard uses that allow the graph to change dynamically, add or delete vertices and edges during run-time. Instead we will apply algorithms to a fixed graph, with a fixed set of vertices, numbered 0, 1, 2, 3, ..., and a fixed set of edges.

In Java, even for a fixed graph, perhaps the "proper" way to write this graph representation software uses inheritance. Here one would write the bare graph program without any additional data attached to vertexes or edges. Then a more detailed example would be written as a class that extended the earlier class. In the past few days I wrote this kind of software, but it's clearly too complicated and too much based on Java for this course.

The example in the diagram above is a directed graph. For an undirected graph we just use a directed edge in each direction. (The graph of capitals above is undirected.) Again in the diagram above, the vertices (nodes of the graph) are represented by an array of nodes: Node [ ] graph = new Node[5];. The edges are represented by the vertices at either end; the first vertex is the vertex in the array and the second vertex is in the linked list of vertices linked to from the first vertex. It's very important to keep clear that, even though the linked list gives vertex numbers, these all represent edges. The vertices are all those at the end of a directed or undirected edge from the first vertex. These vertices in the linked list can appear in any order.

Here is Java code to create this linked list representation. A version of this program in C is graph.c.

Graph construction: 48 mainland US capitals. Data from file: capsdist.txt
// Graph.java: set up graphs data structure
//  Uses adjacency list representation
import java.io.*;
public class Graph {
   public int nodes; // number of nodes
   public Node[] graph;

   public Graph(int n) {
      nodes = n;
      graph = new Node[nodes];
      for (int i = 0; i < nodes; i++)
         graph[i] = new Node();
   }

   // insertEdge: insert directed edge
   public void insertEdge(int num1, int num2,
         int len) {
      // patch the new node in at the start
      graph[num1].firstEdge = new Edge(num2,
         graph[num1].firstEdge, len);
   }

// Node.java: node for graph's vertex
//  Holds node info, link to adj. list
public class Node {
   public Edge firstEdge;
   // other node info here

   public Node() {
      firstEdge = null;
      // initialize other node info here

   }
}

// Edge.java: holds graph's edge info
//  Implement adjacency list
public class Edge {
   public int nodeNum; // at end of edge
   public Edge nextEdge; // next in adj list
   // other edge info here
   public int edgeLen; // edge length

   public Edge(int num, Edge e, int len) {
      nodeNum = num;
      nextEdge = e;
      // initialize other edge info here
      edgeLen = len;
   }
}

// GraphMain.java: Controls Graph Program
import java.io.*;
import java.util.Scanner;
public class GraphMain {

   private static void err(int code) {
      System.exit(code);
   }

   public static void main(String[] args) {
      int nodes = 0;
      Scanner sc = null; // compiler wants
      int num1 = 0, num2 = 0, len = 0;
      try {
         sc = new Scanner(new
            File("capsdist.txt")); // file
      }
      catch (Exception exception ) { err(1); }
      if (sc.hasNextInt())
         nodes = sc.nextInt();
      else err(2);
      Graph graph = new Graph(nodes);
      // get vertices = num of vertices
      while (sc.hasNextInt()) {
         num1 = sc.nextInt();
         if (sc.hasNextInt())
            num2 = sc.nextInt();
         else err(2);
         if (sc.hasNextInt())
            len = sc.nextInt();
         else err(3);
         // undirected, insert both ways
         graph.insertEdge(num1, num2, len);
         graph.insertEdge(num2, num1, len);
     }
   }
}
Pairs of Cities & Distances (Edges and weights)
file: capsdist.txt
48
0  4 755
0  1 129
0  2 535
1  4 713
1  5 534
1  6 541
1  2 663
2  6 441
2  3 160
3  6 619
4  7 476
4  5 652
5  8 488
5  9 435
5  6 338
6  9 727
6 10 438
7 11 697
7 12 585
7  8 355
8 12 626
8 13 536
8 14 486
8  9 100
9 14 444
9 15 455

 9 10 675
10 15 742
10 16 624
11 17 430
11 18 504
11 12 388
12 18 337
12 19 416
12 13 293
13 19 204
13 14 165
14 19 343
14 20 187
14 15 392
15 20 490
15 21 404
15 16 215
16 21 435
17 22 150
17 18 416
18 22 253
18 26 344
18 19 340
19 26 453
19 27 562
19 23 192
19 20 255

20 23 291
20 24 279
20 21 244
21 24 258
22 25 242
22 26 392
23 27 415
23 28 190
23 24 249
24 29 614
25 30 205
25 31 160
25 26 282
26 31 255
26 36 530
26 32 597
26 27 203
27 32 532
27 33 197
27 34 186
27 28 145
28 34 175
28 29 244
29 34 237
30 31 252
31 35 212

31 36 434
32 36 156
32 37 129
32 33 302
33 37 397
33 38 354
33 34 160
34 38 425
35 36 200
37 39 62
37 38 103
38 39 124
38 40 127
38 41 268
39 40 108
40 41 193
41 43 111
41 44 165
41 42 153
42 44 236
42 45 106
43 46 72
43 44 101
44 46 45
44 45 68
45 47 139

Here is one possible version of the data that your printGraph() function should produce for Recitation 11.

Complete Structure of the Internal Graph Representation
(undirected graph, so each edge appears twice)
First
vertex		Second vertices of edges and distances,
starting with the first vertex at the left
 0: [ 2,535],[ 1,129],[ 4,755]
 1: [ 2,663],[ 6,541],[ 5,534],[ 4,713],[ 0,129]
 2: [ 3,160],[ 6,441],[ 1,663],[ 0,535]
 3: [ 6,619],[ 2,160]
 4: [ 5,652],[ 7,476],[ 1,713],[ 0,755]
 5: [ 6,338],[ 9,435],[ 8,488],[ 4,652],[ 1,534]
 6: [10,438],[ 9,727],[ 5,338],[ 3,619],[ 2,441],[ 1,541]
 7: [ 8,355],[12,585],[11,697],[ 4,476]
 8: [ 9,100],[14,486],[13,536],[12,626],[ 7,355],[ 5,488]
 9: [10,675],[15,455],[14,444],[ 8,100],[ 6,727],[ 5,435]
10: [16,624],[15,742],[ 9,675],[ 6,438]
11: [12,388],[18,504],[17,430],[ 7,697]
12: [13,293],[19,416],[18,337],[11,388],[ 8,626],[ 7,585]
13: [14,165],[19,204],[12,293],[ 8,536]
14: [15,392],[20,187],[19,343],[13,165],[ 9,444],[ 8,486]
15: [16,215],[21,404],[20,490],[14,392],[10,742],[ 9,455]
16: [21,435],[15,215],[10,624]
17: [18,416],[22,150],[11,430]
18: [19,340],[26,344],[22,253],[17,416],[12,337],[11,504]
19: [20,255],[23,192],[27,562],[26,453],[18,340],[14,343],[13,204],[12,416]
20: [21,244],[24,279],[23,291],[19,255],[15,490],[14,187]
21: [24,258],[20,244],[16,435],[15,404]
22: [26,392],[25,242],[18,253],[17,150]
23: [24,249],[28,190],[27,415],[20,291],[19,192]
24: [29,614],[23,249],[21,258],[20,279]
25: [26,282],[31,160],[30,205],[22,242]
26: [27,203],[32,597],[36,530],[31,255],[25,282],[22,392],[19,453],[18,344]
27: [28,145],[34,186],[33,197],[32,532],[26,203],[23,415],[19,562]
28: [29,244],[34,175],[27,145],[23,190]
29: [34,237],[28,244],[24,614]
30: [31,252],[25,205]
31: [36,434],[35,212],[30,252],[26,255],[25,160]
32: [33,302],[37,129],[36,156],[27,532],[26,597]
33: [34,160],[38,354],[37,397],[32,302],[27,197]
34: [38,425],[33,160],[29,237],[28,175],[27,186]
35: [36,200],[31,212]
36: [35,200],[32,156],[31,434],[26,530]
37: [38,103],[39, 62],[33,397],[32,129]
38: [41,268],[40,127],[39,124],[37,103],[34,425],[33,354]
39: [40,108],[38,124],[37, 62]
40: [41,193],[39,108],[38,127]
41: [42,153],[44,165],[43,111],[40,193],[38,268]
42: [45,106],[44,236],[41,153]
43: [44,101],[46, 72],[41,111]
44: [45, 68],[46, 45],[43,101],[42,236],[41,165]
45: [47,139],[44, 68],[42,106]
46: [44, 45],[43, 72]
47: [45,139]
