CS 3343/3341, Matrix-chain Multiplications

CS3343/3341
Analysis of Algorithms

Matrix-chain
Multiplications

Matrix-chain Multiplications: Matrix multiplication is not commutative, but it is associative. For matrices that are not square, the order of assiciation can make a big difference. Dynamic programming solves this problem (see your text, pages 370-378). This example has nothing to do with Strassen's method of matrix multiplication.

First, recall that if one wants to multiply two matrices, the number of rows of the second one must equal the number of columns of the first, so that they must look like: (p x q) * (q x r) = (p x r), because we keep taking a row of the first times (inner product) a column of the second (they have to "fit together'). In this example, we do p*r inner products, and each inner product involves q multiplications, so there are p*q*r multiplications altogether.

Following your text's example, consider a chain of three matrix multiplications: (10 x 100) * (100 x 5) * (5 x 50). There are two ways to associate this triple product, each giving the same answer:

[(10 x 100) * (100 x 5)] * (5 x 50) = (10 x 5) * (5 x 50) = (10 x 50)
Multiplications: (10*100*5) + (10*5*50) = 5000 + 2500 = 7500

(10 x 100) * [(100 x 5) * (5 x 50)] = (10 x 100) * (100 x 50) = (10 x 50)
Multiplications: 100*5*50 + 10*100*50 = 25000 + 50000 = 75000

This is an extreme example, but the two different way differ by a factor of 10. We can represent the sizes of this triple product by a simple list of 4 numbers: {10,100,5,50}. We know the remaining dimensions since the matrices must fit together.

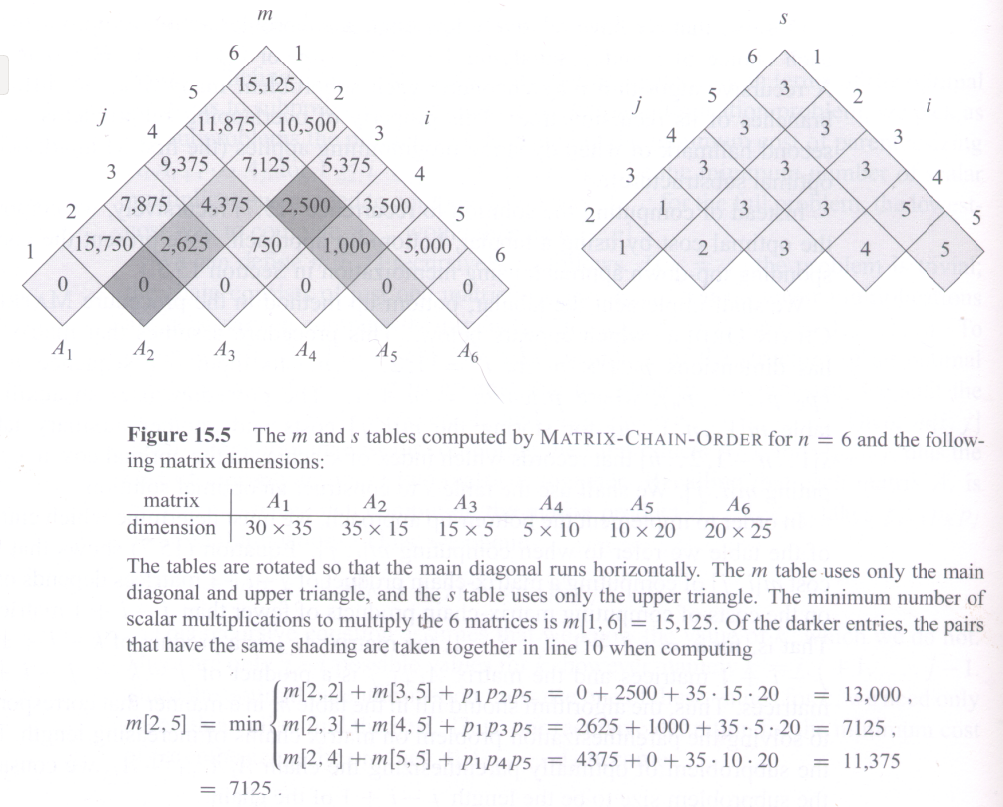

A chain of a product of n matrices is described by a list of n+1 numbers. Your text's standard example is given by the list: {30,35,15,5,10,20,25}. Then a triangular table is constructed from the bottom up, choosing the best way to do the final multiplication at each stage. Here is an illustration from your text (page 376).

Click picture or here for full size picture.

We start with a list of matrices: {A₁,A₁,...,A_n} for some n >= 1. There is also a list of integers {p₀,p₁,...,p_n} such for each i, A_i has dimensions p_i-1 x p_i.

Your text denotes by A_i..j, for i <= j, the matrix resulting from the chain multiplication A_i*A_i+1*...*A_j. This matrix is independent of the association, and we are only interested in the required number of scalar multiplications needed for this computation. In the diagram above, the table entry m[i,j] holds the minimum number of scalar multiplications needed to compute the matrix chain A_i..j. Of course, A_i..j = 0. Then A_i..i+1 is just the product of the two matrices A_i*A_i+1.

In case i < j, then however one associates (inserts parentheses), in calculating A_i..j there has to be a last product calculated. This means there is a k so that A_i..j = A_i..k*A_k..j. The number of multiplications in this case is given by m[i,k] + m[k+1,j] + p_i-1*p_k*p_j. In order to calculate m[i,j], one has to take the minimum of the above expression for all k satisfying 1 <= k < j.

The image above from your text shows this process for m[2,5], the result of multiplying 4 matrices together. This calculation uses table entries calculated earlier, in a bottom-up fashion. (It would also be possible to calculate this recursively, but without memoization, this would be inefficient.) Just carry through this process and the result is as shown in the image above.

The Matrix-chain Multiplication Program:

Matrix Chain Multiplications
// Matrix chain multiplications. // Input: sequence of matrix dimens, end in 0. #include <stdio.h> #define L 15 // big enough for most examples int r(int i, int j, int s[L][L]); // print =s void putpre(int x); // used by r void putdig(int x); // used by r int newtemp(void); // used by r void r2(int i, int j, int s[L][L]);// print par void r3(int i, int j, int s[L][L]);// expression void main(void) { int p[L]; // input array of dimensions int m[L][L]; // array of numbers of mults int s[L][L]; // array giving index opt sol int n = 0, i, ll, j, k, q; int res; // final result from seq of assigns for (i = 0; i < L; i++) { scanf("%i", &p[i]); // read up to a zero if (p[i] <= 0) break; } n = i - 1; // calculate matices m and s for (i = 1 ; i <= n; i++) m[i][i] = 0; for (ll = 2; ll <= n; ll++) for (i = 1; i <= n - ll + 1; i++) { j = i + ll - 1; m[i][j] = 444444444; // "infinity" for (k = i; k <= j - 1; k++) { q = m[i][k] + m[k+1][j] + p[i-1]p[k]p[j]; if (q < m[i][j]) { m[i][j] = q; s[i][j] = k; } } } // print p printf("The array p:\n\n"); for (i = 0; i <= n; i++) printf("p[%i] =%3i, ", i, p[i]); // print m printf("\n\nThe array m:\n\n "); for (i = 1; i <= n; i++) printf(" i=%2i ", i); printf("\n"); for (j = n; j >= 1; j--) { printf("j=%2i:", j); for (i = 1; i <= j; i++) printf("%7i", m[i][j]); printf("\n"); } // print s printf("\nThe array s:\n\n "); for (i = 1; i < n; i++) printf(" i=%2i ", i); printf("\n"); for (j = n; j >= 2; j--) { printf("j=%2i:", j); for (i = 1; i < j; i++) printf("%7i", s[i][j]); printf("\n"); } printf("\n"); res = r(1, n, s); printf("Final result is in T"); putdig(res); printf("\n\n"); r2(1, n, s); printf("\n\n"); r3(1, n, s); printf("\n"); }	// r: function that calcs series of assigns int r(int i, int j, int s[L][L]) { int k, arg1, arg2, res; if (i == j) return i; k = s[i][j]; // top-level split arg1 = r(i, k, s); // temp left half arg2 = r(k+1, j, s); // temp right half res = -newtemp(); // next temp // a negative number indicates a temp // next three lines output one equation putpre(res); putdig(res); putchar('='); putpre(arg1);putdig(arg1);putchar(''); putpre(arg2);putdig(arg2);putchar('\n'); return res; } // putpre: neg is a temp; pos if an arg void putpre(int x) { if (x < 0) putchar('T'); else putchar('A'); } // putdigit: spit one digit, without sign void putdig(int x) { if (x < 0) x = -x; printf("%i", x); } // newtemp: return next integer in order int newtemp(void) { static i = 1; return i++; } // r2: output paren form with extra parens void r2(int i, int j, int s[L][L]) { int k; if (i == j) { printf("A%i", i); return; } k = s[i][j]; printf("("); r2(i, k, s); printf(")("); r2(k+1, j, s); printf(")"); } // r3: output paren form with fewer parens void r3(int i, int j, int s[L][L]) { int k; if (i == j) { printf("A%i", i); return; } printf("("); k = s[i][j]; r3(i, k, s); printf("*"); r3(k+1, j, s); printf(")"); }

Matrix Chain Multiplications

// Matrix chain multiplications.
// Input: sequence of matrix dimens, end in 0.
#include <stdio.h>
#define L 15  // big enough for most examples

int r(int i, int j, int s[L][L]);  // print =s
void putpre(int x);                // used by r
void putdig(int x);                // used by r
int newtemp(void);                 // used by r
void r2(int i, int j, int s[L][L]);// print par
void r3(int i, int j, int s[L][L]);// expression

void main(void) {
   int p[L];     // input array of dimensions
   int m[L][L];  // array of numbers of mults
   int s[L][L];  // array giving index opt sol
   int n = 0, i, ll, j, k, q;
   int res; // final result from seq of assigns
   for (i = 0; i < L; i++) {
      scanf("%i", &p[i]); // read up to a zero
      if (p[i] <= 0) break;
   }
   n = i - 1;
   // calculate matices m and s
   for (i = 1 ; i <= n; i++)
      m[i][i] = 0;
   for (ll = 2; ll <= n; ll++)
      for (i = 1; i <= n - ll + 1; i++) {
         j = i + ll - 1;
         m[i][j] = 444444444; // "infinity"
         for (k = i; k <= j - 1; k++) {
            q = m[i][k] + m[k+1][j] +
               p[i-1]*p[k]*p[j];
            if (q < m[i][j]) {
               m[i][j] = q;
               s[i][j] = k;
            }
         }
      }
   // print p
   printf("The array p:\n\n");
   for (i = 0; i <= n; i++)
      printf("p[%i] =%3i, ", i, p[i]);
   // print m
   printf("\n\nThe array m:\n\n       ");
   for (i = 1; i <= n; i++)
      printf(" i=%2i  ", i);
   printf("\n");
   for (j = n; j >= 1; j--) {
      printf("j=%2i:", j);
      for (i = 1; i <= j; i++)
         printf("%7i", m[i][j]);
      printf("\n");
   }
   // print s
   printf("\nThe array s:\n\n       ");
   for (i = 1; i < n; i++)
      printf(" i=%2i  ", i);
   printf("\n");
   for (j = n; j >= 2; j--) {
      printf("j=%2i:", j);
      for (i = 1; i < j; i++)
         printf("%7i", s[i][j]);
      printf("\n");
   }
   printf("\n");
   res = r(1, n, s);
   printf("Final result is in T");
   putdig(res); printf("\n\n");
   r2(1, n, s); printf("\n\n");
   r3(1, n, s); printf("\n");
}

// r: function that calcs series of assigns
int r(int i, int j, int s[L][L]) {
   int k, arg1, arg2, res;
   if (i == j) return i;
   k = s[i][j];         // top-level split
   arg1 = r(i, k, s);   // temp left half
   arg2 = r(k+1, j, s); // temp right half
   res = -newtemp();    // next temp
   // a negative number indicates a temp
   // next three lines output one equation
   putpre(res); putdig(res); putchar('=');
   putpre(arg1);putdig(arg1);putchar('*');
   putpre(arg2);putdig(arg2);putchar('\n');
   return res;
}

// putpre: neg is a temp; pos if an arg
void putpre(int x) {
   if (x < 0) putchar('T');
   else putchar('A');
}

// putdigit: spit one digit, without sign
void putdig(int x) {
   if (x < 0) x = -x;
   printf("%i", x);
}

// newtemp: return next integer in order
int newtemp(void) {
   static i = 1;
   return i++;
}

// r2: output paren form with extra parens
void r2(int i, int j, int s[L][L]) {
   int k;
   if (i == j) {
      printf("A%i", i);
      return;
   }
   k = s[i][j];
   printf("(");
   r2(i, k, s);
   printf(")*(");
   r2(k+1, j, s);
   printf(")");
}

// r3: output paren form with fewer parens
void r3(int i, int j, int s[L][L]) {
   int k;
   if (i == j) {
      printf("A%i", i);
      return;
   }
   printf("(");
   k = s[i][j];
   r3(i, k, s);
   printf("*");
   r3(k+1, j, s);
   printf(")");
}

Output: Here are four different outputs for different sequences of dimensions of the matrices:

The array p: p[0] = 30, p[1] = 35, p[2] = 15, p[3] = 5, p[4] = 10, p[5] = 20, p[6] = 25, The array m: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 j= 6: 15125 10500 5375 3500 5000 0 j= 5: 11875 7125 2500 1000 0 j= 4: 9375 4375 750 0 j= 3: 7875 2625 0 j= 2: 15750 0 j= 1: 0 The array s: i= 1 i= 2 i= 3 i= 4 i= 5 j= 6: 3 3 3 5 5 j= 5: 3 3 3 4 j= 4: 3 3 3 j= 3: 1 2 j= 2: 1 T1=A2A3 T2=A1T1 T3=A4A5 T4=T3A6 T5=T2T4 Final result is in T5 ((A1)((A2)(A3)))(((A4)(A5))(A6)) ((A1(A2A3))((A4A5)*A6))	The array p: p[0] = 5, p[1] = 10, p[2] = 3, p[3] = 12, p[4] = 5, p[5] = 50, p[6] = 6, The array m: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 j= 6: 2010 1950 1770 1860 1500 0 j= 5: 1655 2430 930 3000 0 j= 4: 405 330 180 0 j= 3: 330 360 0 j= 2: 150 0 j= 1: 0 The array s: i= 1 i= 2 i= 3 i= 4 i= 5 j= 6: 2 2 4 4 5 j= 5: 4 2 4 4 j= 4: 2 2 3 j= 3: 2 2 j= 2: 1 T1=A1A2 T2=A3A4 T3=A5A6 T4=T2T3 T5=T1T4 Final result is in T5 ((A1)(A2))(((A3)(A4))((A5)(A6))) ((A1A2)((A3A4)(A5*A6)))
The array p: p[0] = 20, p[1] = 25, p[2] = 5, p[3] = 10, p[4] = 30, p[5] = 15, p[6] = 20, p[7] = 10, p[8] = 5, p[9] = 40, The array m: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 i= 7 i= 8 i= 9 j= 9: 13500 12125 7500 8250 10750 5500 5000 2000 0 j= 8: 9500 7125 6500 6250 4750 2500 1000 0 j= 7: 9750 7500 6250 9000 7500 3000 0 j= 6: 9750 7750 5250 7500 9000 0 j= 5: 7750 5625 3750 4500 0 j= 4: 7000 5250 1500 0 j= 3: 3500 1250 0 j= 2: 2500 0 j= 1: 0 The array s: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 i= 7 i= 8 j= 9: 8 8 8 8 8 8 8 8 j= 8: 2 2 3 4 5 6 7 j= 7: 2 2 6 5 5 6 j= 6: 2 2 5 5 5 j= 5: 2 2 4 4 j= 4: 2 2 3 j= 3: 2 2 j= 2: 1 T1=A1A2 T2=A7A8 T3=A6T2 T4=A5T3 T5=A4T4 T6=A3T5 T7=T1T6 T8=T7A9 Final result is in T8 (((A1)(A2))((A3)((A4)((A5)((A6)((A7)(A8)))))))(A9) (((A1A2)(A3(A4(A5(A6(A7A8))))))A9)
The array p: p[0] = 20, p[1] = 10, p[2] = 15, p[3] = 5, p[4] = 25, p[5] = 10, p[6] = 30, p[7] = 5, p[8] = 10, p[9] = 20, p[10] = 25, p[11] = 15, The array m: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 i= 7 i= 8 i= 9 i=10 i=11 j=11: 11875 10125 9750 8625 10000 7625 7625 5375 8750 7500 0 j=10: 11000 8750 8625 6750 9375 6250 7250 3500 5000 0 j= 9: 8000 6000 5750 4250 6250 3500 4000 1000 0 j= 8: 6000 4500 4000 3250 4000 2000 1500 0 j= 7: 5000 4000 3375 3000 2750 1500 0 j= 6: 7500 5000 5000 2750 7500 0 j= 5: 4000 2500 2000 1250 0 j= 4: 4250 2000 1875 0 j= 3: 1750 750 0 j= 2: 3000 0 j= 1: 0 The array s: i= 1 i= 2 i= 3 i= 4 i= 5 i= 6 i= 7 i= 8 i= 9 i=10 j=11: 3 3 3 10 7 7 7 10 10 10 j=10: 3 3 3 9 7 7 7 9 9 j= 9: 3 3 3 8 7 7 7 8 j= 8: 3 3 3 7 7 7 7 j= 7: 1 3 3 5 5 6 j= 6: 3 3 3 5 5 j= 5: 3 3 3 4 j= 4: 3 3 3 j= 3: 1 2 j= 2: 1 T1=A2A3 T2=A1T1 T3=A4A5 T4=A6A7 T5=T3T4 T6=T5A8 T7=T6A9 T8=T7A10 T9=T8A11 T10=T2T9 Final result is in T10 ((A1)((A2)(A3)))(((((((A4)(A5))((A6)(A7)))(A8))(A9))(A10))(A11)) ((A1(A2A3))((((((A4A5)(A6A7))A8)A9)A10)A11))

The array p:

p[0] = 30, p[1] = 35, p[2] = 15, p[3] =  5,
p[4] = 10, p[5] = 20, p[6] = 25,

The array m:

        i= 1   i= 2   i= 3   i= 4  i= 5  i= 6
j= 6:  15125  10500   5375   3500  5000     0
j= 5:  11875   7125   2500   1000     0
j= 4:   9375   4375    750      0
j= 3:   7875   2625      0
j= 2:  15750      0
j= 1:      0

The array s:

        i= 1   i= 2   i= 3   i= 4   i= 5
j= 6:      3      3      3      5      5
j= 5:      3      3      3      4
j= 4:      3      3      3
j= 3:      1      2
j= 2:      1

T1=A2*A3
T2=A1*T1
T3=A4*A5
T4=T3*A6
T5=T2*T4
Final result is in T5

((A1)*((A2)*(A3)))*(((A4)*(A5))*(A6))

((A1*(A2*A3))*((A4*A5)*A6))

The array p:

p[0] =  5, p[1] = 10, p[2] =  3, p[3] = 12,
p[4] =  5, p[5] = 50, p[6] =  6,

The array m:

        i= 1   i= 2   i= 3   i= 4  i= 5  i= 6
j= 6:   2010   1950   1770   1860  1500     0
j= 5:   1655   2430    930   3000     0
j= 4:    405    330    180      0
j= 3:    330    360      0
j= 2:    150      0
j= 1:      0

The array s:

        i= 1   i= 2   i= 3   i= 4   i= 5
j= 6:      2      2      4      4      5
j= 5:      4      2      4      4
j= 4:      2      2      3
j= 3:      2      2
j= 2:      1

T1=A1*A2
T2=A3*A4
T3=A5*A6
T4=T2*T3
T5=T1*T4
Final result is in T5

((A1)*(A2))*(((A3)*(A4))*((A5)*(A6)))

((A1*A2)*((A3*A4)*(A5*A6)))

The array p:

p[0] = 20, p[1] = 25, p[2] =  5, p[3] = 10, p[4] = 30, p[5] = 15,
p[6] = 20, p[7] = 10, p[8] =  5, p[9] = 40,

The array m:

        i= 1   i= 2   i= 3   i= 4   i= 5   i= 6   i= 7   i= 8   i= 9
j= 9:  13500  12125   7500   8250  10750   5500   5000   2000      0
j= 8:   9500   7125   6500   6250   4750   2500   1000      0
j= 7:   9750   7500   6250   9000   7500   3000      0
j= 6:   9750   7750   5250   7500   9000      0
j= 5:   7750   5625   3750   4500      0
j= 4:   7000   5250   1500      0
j= 3:   3500   1250      0
j= 2:   2500      0
j= 1:      0

The array s:

        i= 1   i= 2   i= 3   i= 4   i= 5   i= 6   i= 7   i= 8
j= 9:      8      8      8      8      8      8      8      8
j= 8:      2      2      3      4      5      6      7
j= 7:      2      2      6      5      5      6
j= 6:      2      2      5      5      5
j= 5:      2      2      4      4
j= 4:      2      2      3
j= 3:      2      2
j= 2:      1

T1=A1*A2
T2=A7*A8
T3=A6*T2
T4=A5*T3
T5=A4*T4
T6=A3*T5
T7=T1*T6
T8=T7*A9
Final result is in T8

(((A1)*(A2))*((A3)*((A4)*((A5)*((A6)*((A7)*(A8)))))))*(A9)

(((A1*A2)*(A3*(A4*(A5*(A6*(A7*A8))))))*A9)

The array p:

p[0] = 20, p[1] = 10, p[2] = 15, p[3] =  5, p[4] = 25, p[5] = 10, p[6] = 30, p[7] =  5,
p[8] = 10, p[9] = 20, p[10] = 25, p[11] = 15,

The array m:

        i= 1   i= 2   i= 3   i= 4   i= 5   i= 6   i= 7   i= 8   i= 9   i=10   i=11
j=11:  11875  10125   9750   8625  10000   7625   7625   5375   8750   7500      0
j=10:  11000   8750   8625   6750   9375   6250   7250   3500   5000      0
j= 9:   8000   6000   5750   4250   6250   3500   4000   1000      0
j= 8:   6000   4500   4000   3250   4000   2000   1500      0
j= 7:   5000   4000   3375   3000   2750   1500      0
j= 6:   7500   5000   5000   2750   7500      0
j= 5:   4000   2500   2000   1250      0
j= 4:   4250   2000   1875      0
j= 3:   1750    750      0
j= 2:   3000      0
j= 1:      0

The array s:

        i= 1   i= 2   i= 3   i= 4   i= 5   i= 6   i= 7   i= 8   i= 9   i=10
j=11:      3      3      3     10      7      7      7     10     10     10
j=10:      3      3      3      9      7      7      7      9      9
j= 9:      3      3      3      8      7      7      7      8
j= 8:      3      3      3      7      7      7      7
j= 7:      1      3      3      5      5      6
j= 6:      3      3      3      5      5
j= 5:      3      3      3      4
j= 4:      3      3      3
j= 3:      1      2
j= 2:      1

T1=A2*A3
T2=A1*T1
T3=A4*A5
T4=A6*A7
T5=T3*T4
T6=T5*A8
T7=T6*A9
T8=T7*A10
T9=T8*A11
T10=T2*T9
Final result is in T10

((A1)*((A2)*(A3)))*(((((((A4)*(A5))*((A6)*(A7)))*(A8))*(A9))*(A10))*(A11))

((A1*(A2*A3))*((((((A4*A5)*(A6*A7))*A8)*A9)*A10)*A11))
