Introduction: This page uses quicksort to
study introductory algorithm
execution analysis focusing on recursion trees and
cost analysis. Your text covers some of this material
on pages 88-93. Here "cost" means the execution time, and,
quoting from your text:
"in a recursion tree, each node represents the cost of a
single subproblem somewhere in the set of recursive function
invocations."
Quicksort: Here there is a particularly interesting
recursion tree, with each node at each level having two
subnodes until the leaf nodes at the bottom.
The cost at each level is c * n for a constant
c. (This is the cost of doing all the partitioning
at a given level -- not a single partition.)
Best Case Quicksort: In the best case, everything will be exactly
halved at each stage, giving a recurrence of:
T(n) = 2 T(n/2) + Θ(n)
So the height of the tree will be the same
as with any time we repeatedly half n: log2(n)
and the total cost will be
c * n * log2(n).
Thus in the best case this will be a Θ(n log n)

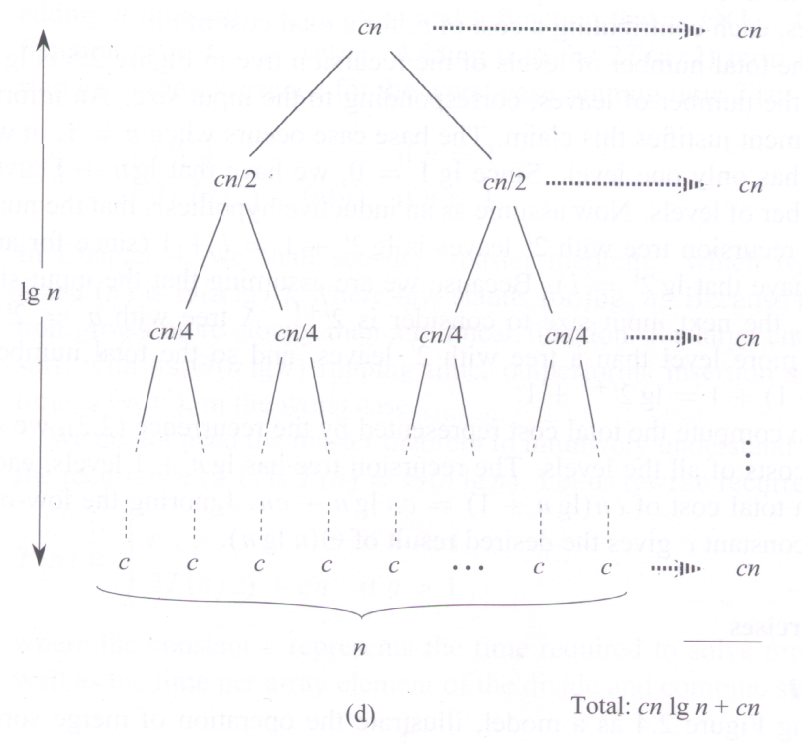

algorithm. Here is a picture of the recursion tree:
Worst Case Quicksort: In the worst case, each
partition has just the pivot, with everything else on one
side of the other. This worst case is encountered using
the book's (non-randomized) algorithm working on an
array that is already sorted. Here the recurrence will be:
T(n) = T(n - 1) + T(0)+ Θ(n), and T(0) = Θ(1)
Here the tree has height n, and the cost at each level
is c*n, so this is a Θ(n2) algorithm.
Unbalanced Quicksort:
Your text, on page 176 considers a possible partitioning
encountered by quicksort in which the ratios are1/10 and
9/10 at each node, as with the binary search with
unequal divisions above. Here the recurrence is:
T(n) = T(9n/10) + T(n/10)+ c n
Here are three cases of repeatedly multiplying n by a constant
until we get to 1.
Constant: 1/2:
Get to 1 after log2(n) steps.
Constant: 1/10:
Get to 1 after log10(n) steps.
log10(n) = log2(n) * log10(2) =
0.30103 * log2(n)
Constant: 9/10:
Get to 1 after log10/9(n) steps.
log10/9(n) = log2(n) * log10/9(2) =
6.57881 * log2(n)
In this case, the shortest depth
of a leaf is log10(n), while the largest
depth is log10/9(n). See the previous
section or the logarithm page
for this value. In this bad splitting, the cost is still
Θ(n log n).
The cost at the top level is to do 1 partition,
at the next level down it is to do 2 partitions,
then 4 partitions, then 8 and so forth.
In spite of the increasing number of partitions as we go
down the levels, the cost is about the same, since all
the partitions at a given level work on the same number of
array elements. At the level given by log10(n),
the leftmost downward line gets to a leaf node and terminates.
Other lines give out as the depth increases, and this is shown in
the diagram with "<= cn" as the cost, since parts of
the array are sorted and no longer worked on. The deepest
line downward is at the far right, with depth
log10/9(n). In any case, the algorithm
is Θ(n*log(n)). Revision date:2012-02-01.
